Rear Electronic Module (REM)

Rear Electronic Module (REM)

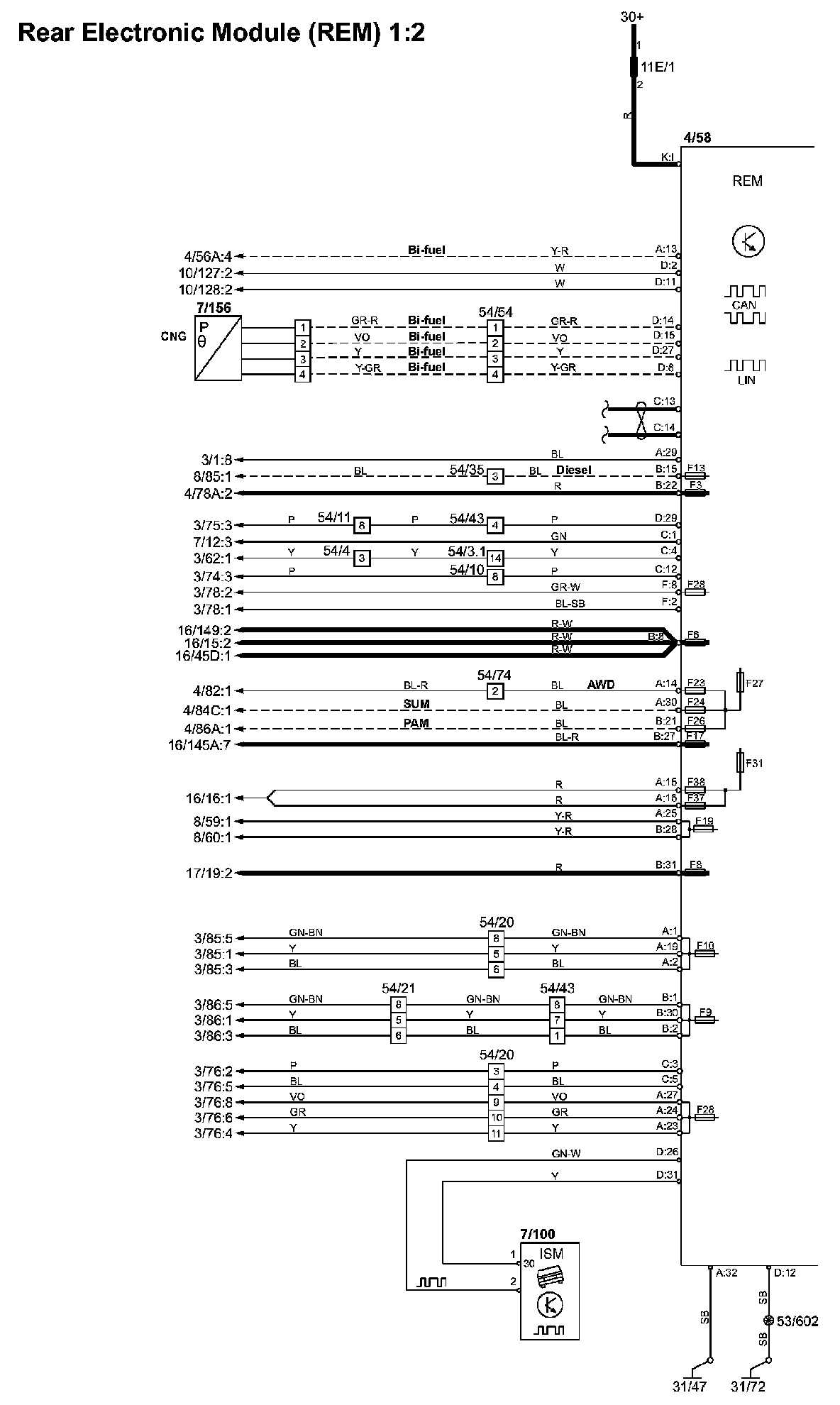

Rear Electronic Module (REM) 1:2:

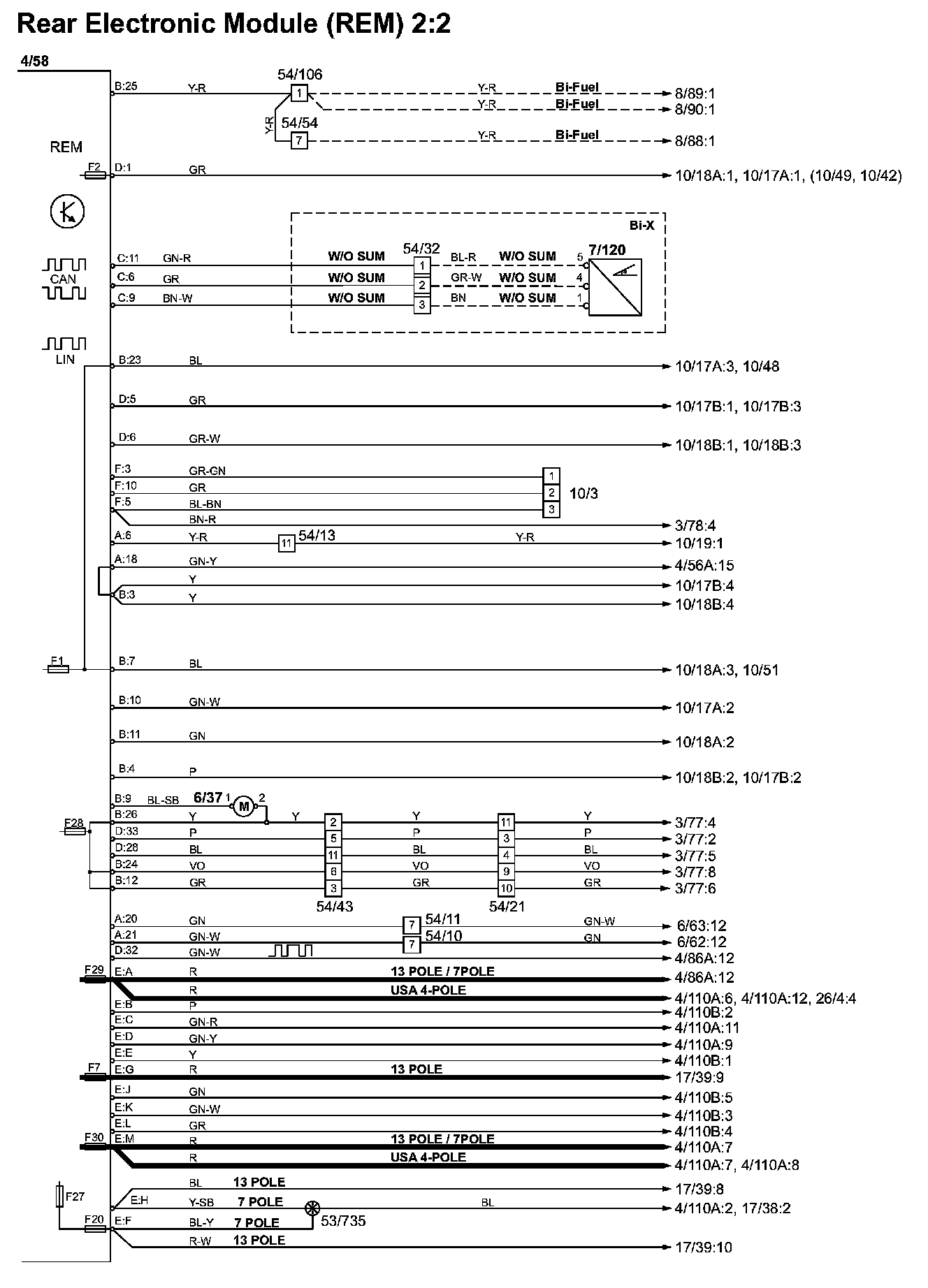

Rear Electronic Module (REM) 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
