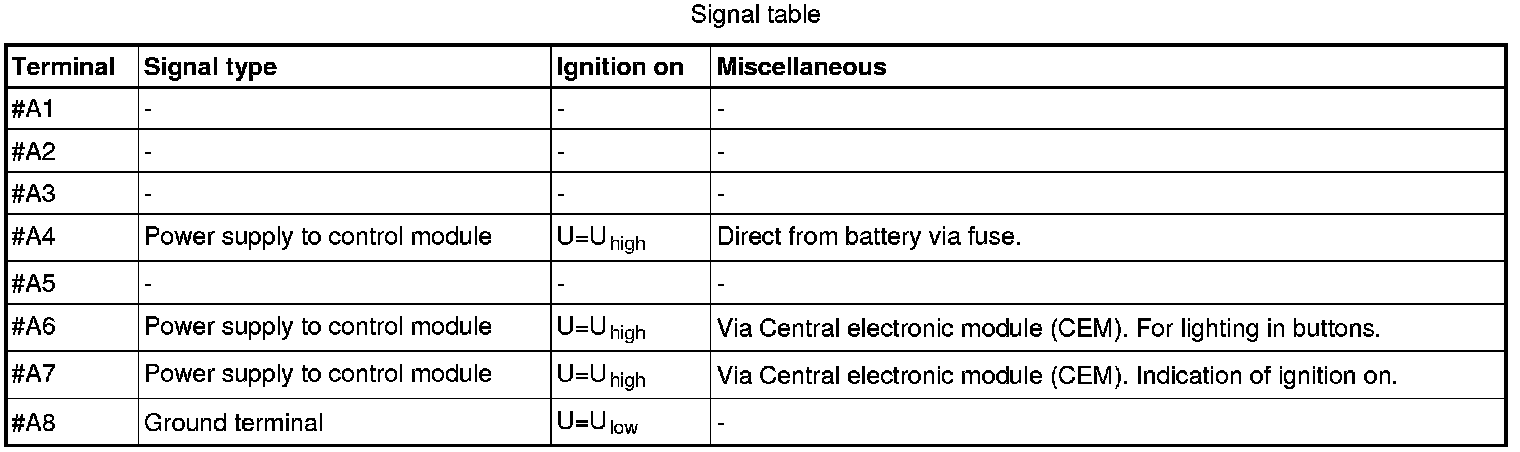

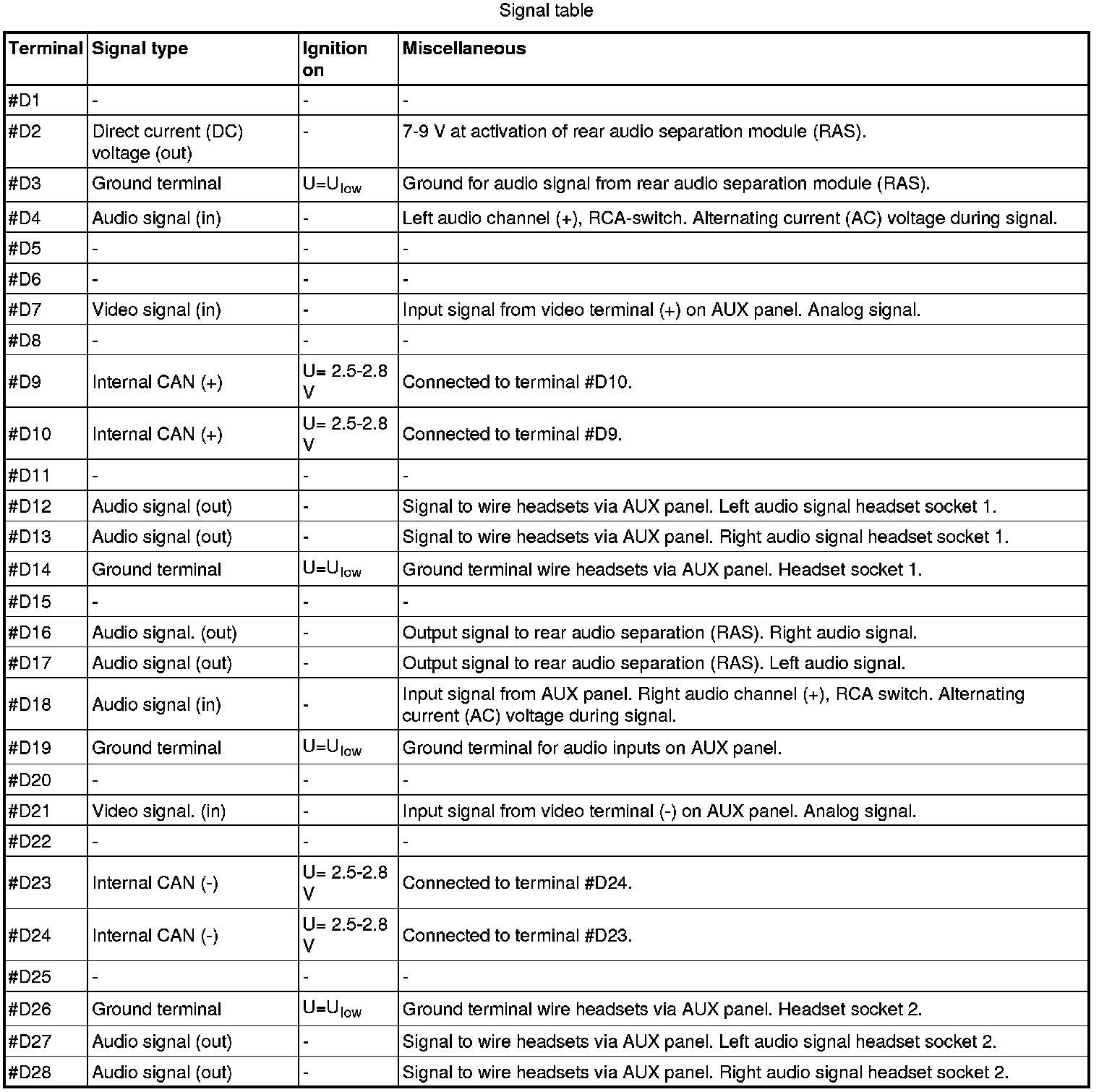

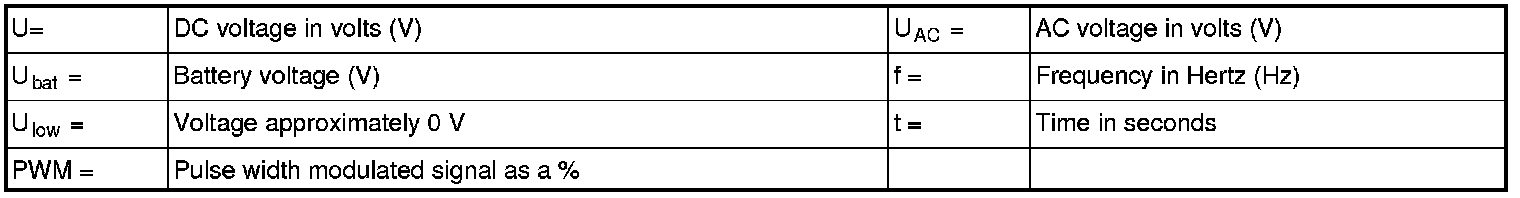

Signal Specification, Rear Seat Entertainment Module (RSE), Generation 4.1






Signal specification, rear seat entertainment module (RSE), generation 4.1






Damaged rear seat entertainment module (RSE).
