System Overview

System overview

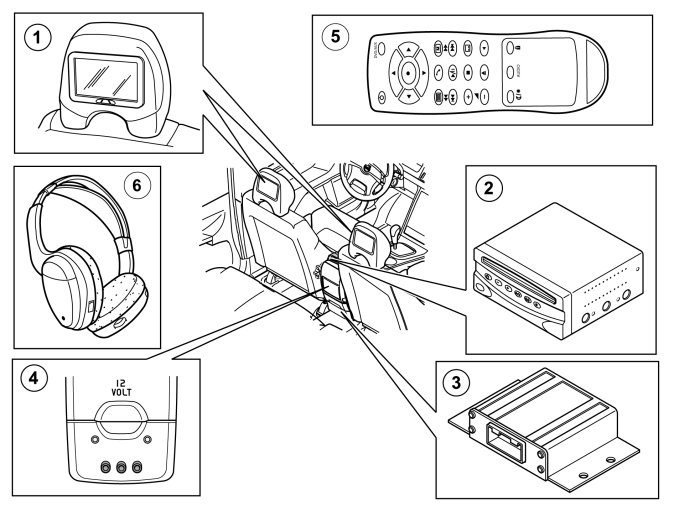

Rear seat entertainment system




1. Screen, head restraint (16/81A, B)
2. DVD player with integrated Rear seat entertainment module (RSE) (16/82)
3. Rear audio separation module (RAS) (16/122)
4. AUX socket (16/123)
5. Headphones (two)
6. Remote control
The rear seat entertainment system is a mobile entertainment system for keeping rear seat passengers occupied and entertained with video games or movies.
The system is fully integrated in the car and has two separately controlled, high-resolution 7-inch screens mounted in the head restraints.
The rear seat entertainment module (RSE) is integrated in the DVD player and can receive signals from up to three AV inputs and can transmit video to two separately controlled screens. The control module can also send an output signal to an external screen.

The following media formats can be played by the DVD player:
- DVD-R/+R
- DVD-RW/+RW
- CD-R and CD-RW
- CDDA
- HDCD

The following information formats can be played:
- DVD
- DVD Audio
- VCD
- SVCD
- DivX
- WMV
- Audio CD
- Kodak photo CD
- MP3
- MP3 Pro
- playlists in M3U format
- WMA Sound.
Formats such as THX and DolbyDigital are also supported. Only stereo signals of this audio format are reproduced.
A connection panel with AV inputs is mounted on the rear section of the center console. Other audio and video sources can be connected to the system via this panel, such as video cameras, games consoles or portable DVD and CD players.
The system includes two pairs of wireless headphones. Audio is transferred to the headphones via an IR transmitter in each screen. Headphones with wire can be used by connecting them to the socket in the AUX panel on the back of the center console.
Audio can also be played in the rear speakers using the rear audio separation module (RAS).
The system is controlled via an infrared remote control, which can also be used to control the DVD player and the vehicle's front audio system (if installed).

Different versions (generations) of the system
The system comes in different versions (generations) depending on which software is installed in the control module/DVD player. There are slight differences in function, primarily when handling system faults. There is no difference between the systems form a hardware perspective.
XC90
For XC90 from VIN 258731, generation 4.1 is installed on the car (software version 1.8.X).
For VINs prior to this number the system is generation 3 (software version 1.5.X).
The software version in the car can be read out using the service menu. Access the menu as follows:

Model year 2006:
1. Switch on the system
2. Open the menu: SYSTEM MENU , SETUP , SERVICE MENU
3. Enter the code: 1971 and press ENTER

Model year 2007-:
1. Switch on the system

Note! There must not be a disc in the DVD player.

2. Aim the remote control at a screen and depress the button for child lock for approx. 5 seconds. The menu SYSTEM MENU will be displayed with four stars underneath.
V70/XC70
For V70/XC70, all systems are generation 4.1
For more information, see the section Diagnostic functions/Fault-tracing information.

Signals

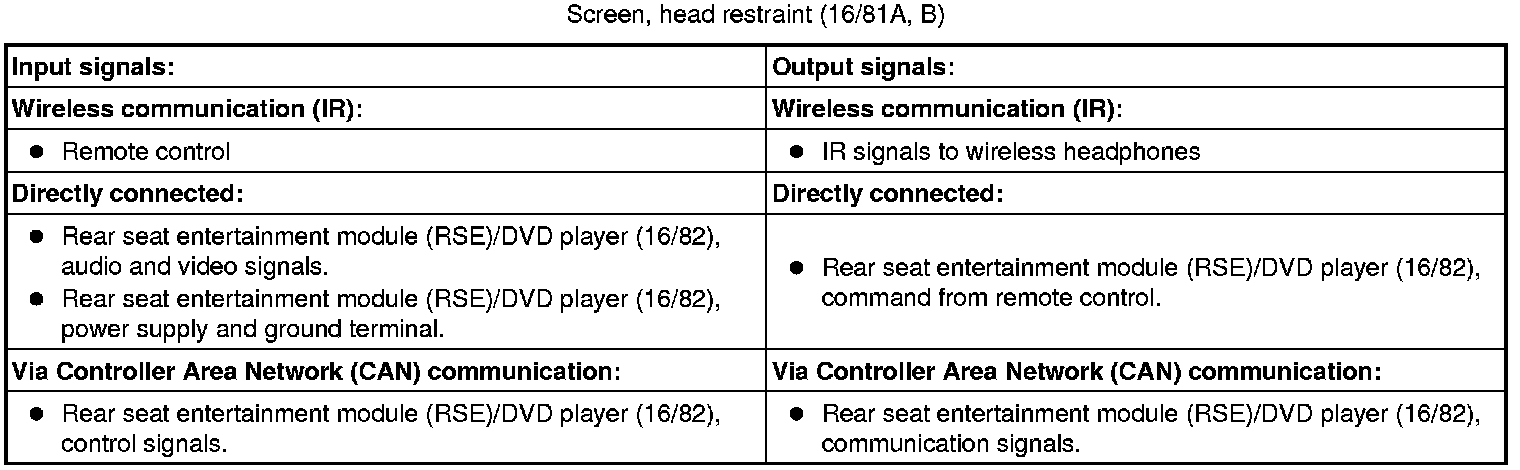

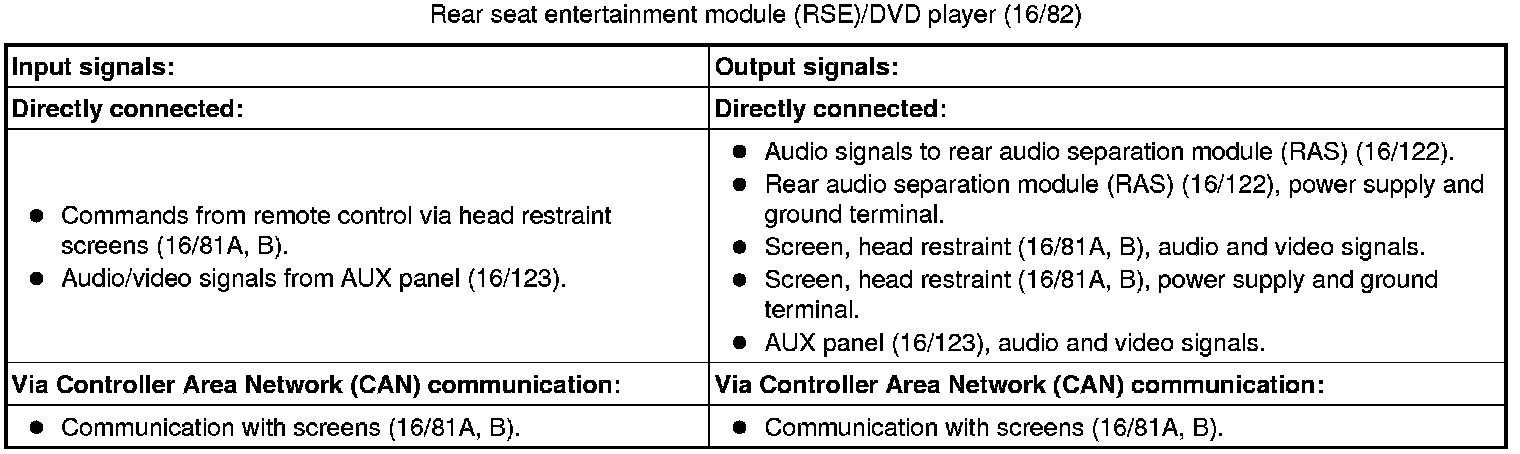

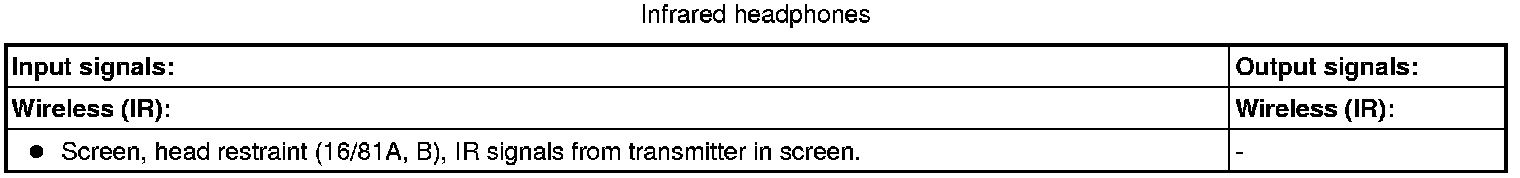

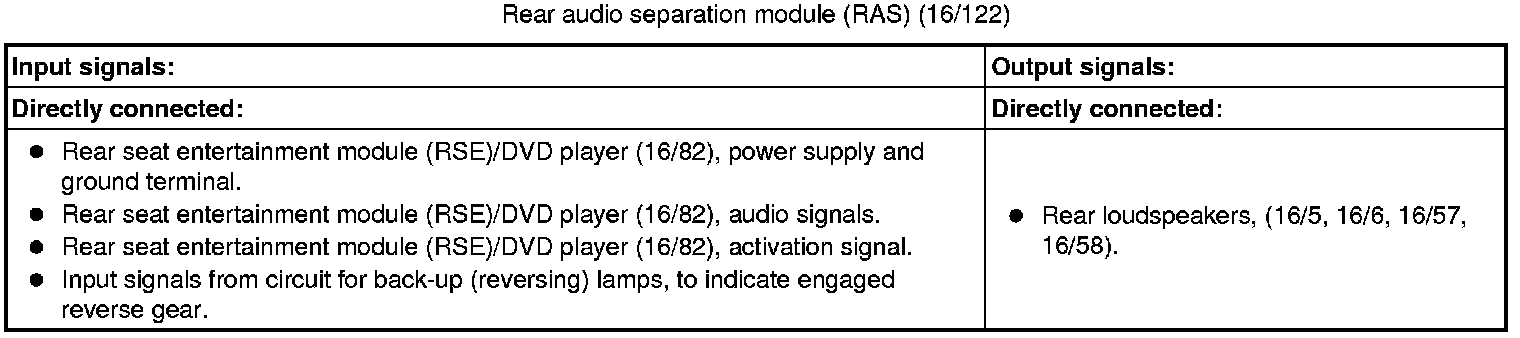

The tables below include the in and output signals for the units in the system for rear seat entertainment.

Note! The CAN communication given here is only a private CAN between the control module and the screens.
