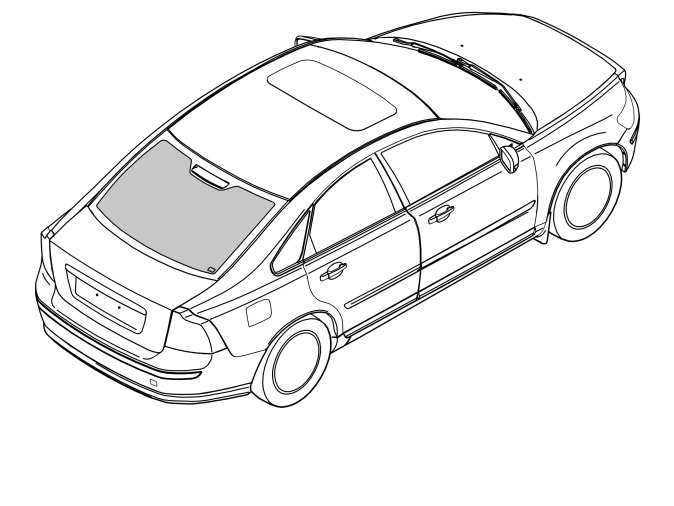

Sun Blind Saloon, Rear Windscreen

Sun blind saloon, rear windscreen



















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Sun blind saloon, rear windscreen

Installing the sun blind

Note! The sun blinds for the rear windscreen open using spring force

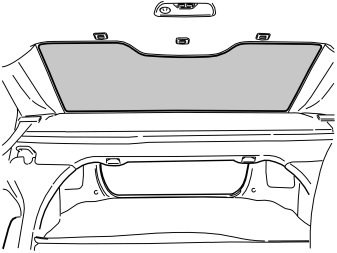

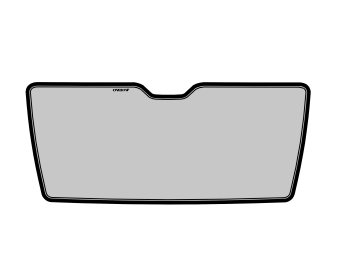

- Unfurl the sun blind and position it where the rear windscreen meets the parcel shelf. The Volvo label must be located on the upper edge towards the roof.

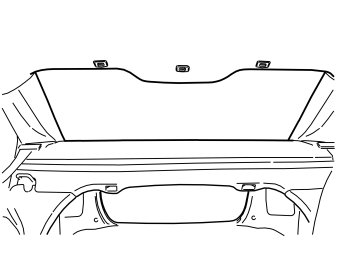

- Lift the sun blind gently and fasten it under the roof panel.

Packing up the sun blind












- Grip two diagonal corners and twist the sun blind as illustrated. Turn the sun blind on itself. Minimal force is required to fold the sun blind.
