Navigation System Module

Navigation System Module

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

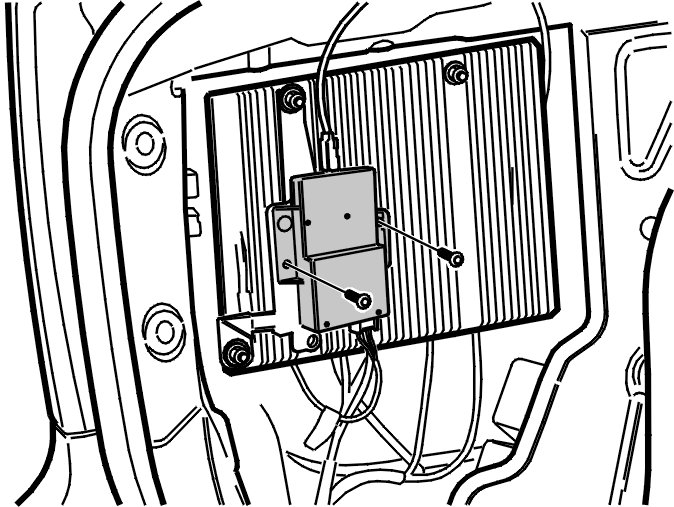

Removing the global positioning system module (GPS)




Move the left-hand side panel at the rear edge of the cargo compartment to one side. See: Side panel loadspace Side Panel Loadspace.

Remove:
- the 3 connectors
- the 2 screws
- the control module.

Installation

Installing the global positioning system module (GPS)

Install:
- the control module
- the 2 screws
- the 3 connectors
- the cargo compartment side panel. See: Side panel loadspace Side Panel Loadspace.

Finishing

Ordering software
Order software. See: 30667200
