Panel, Luggage Compartment Lid

Panel, Luggage Compartment Lid

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the panel from the trunk lid





Remove the warning triangle.

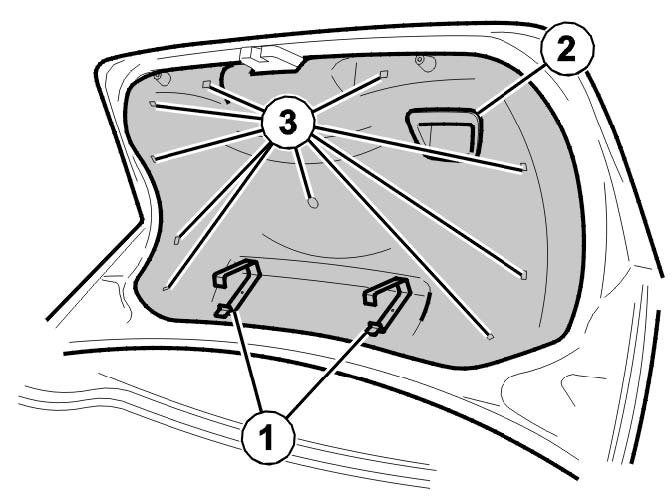

Remove the locking pins from the mounting (1) for the warning triangle by pulling them straight out. Angle out and remove the mounting.

Remove the inner handle from the trunk lid.

HINT: To access the locking hook at the marking (2), use a weatherstrip tool to press in between the upholstery and the handle.

Remove:
- the 10 clips (3)
- the panel.

Installation:

Installing the panel in the trunk lid

Install:
- the panel
- the 10 clips
- the inner handle for the trunk lid
- the mounting for the warning triangle
- the warning triangle.
