Quarter Window Regulator: Service and Repair

Power door window rear

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the regulator mechanism




Remove the side window as described in Rear side window Service and Repair.

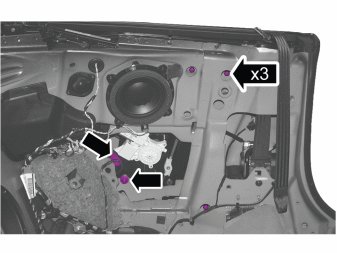

Undo the 3 M6 nuts.
Unplug the regulator motor connector.
Lift out the regulator mechanism.

Caution! Note the positions of the adjuster screws. Use these to make a basic adjustment of the new regulator mechanism.

Transferring components

Transferring the electric motor

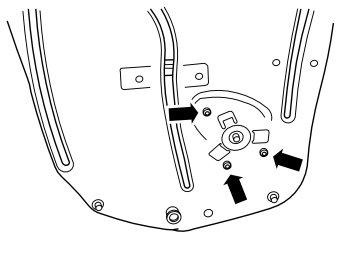

Remove the 3 screws holding the electric motor in the regulator mechanism.

Installation

Installing the regulator mechanism

Note! For tightening torques, see: Tightening torque. [1][2]Body and Frame

Guide in the regulator mechanism.

Note! Make sure that the 3 adjuster screws are correctly positioned.

Install:
- the 3 M6 nuts and tighten.
- the connector
- the side window as described in Rear side window Service and Repair.
Initiate the window regulator.
