Quarter Window Glass: Service and Repair

Rear side window

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work




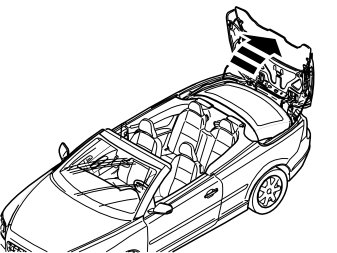

Close the window.

Removal

Removing the rear door window





Remove:
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat
- the inner and outer weatherstrip

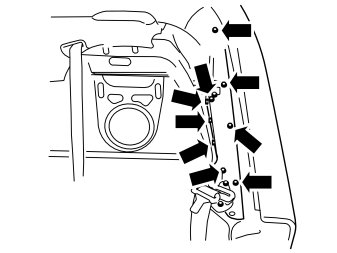

- the 7 screws and 2 nuts of the plate bracket
- the plate bracket





Note! Use butyl or the like as it is easy to drop the nuts and washers.

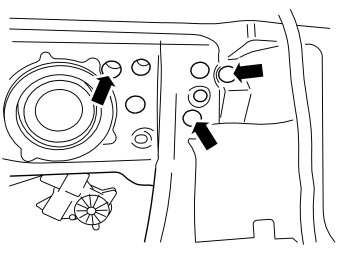

Remove the 3 nuts and 3 washers.
Angle the bottom of the window toward the vehicle interior and remove it.

Installation

Installing the rear door window

Note! For tightening torques, see Specifications. [1][2]Body and Frame

Note! The regulator mechanism should be completely raised.

Note! Two people are required for this task.

Guide in the window.

Install:
- the 3 washers
- the 3 M6 nuts. Adjust as described in Side window rear, adjusting Side Window Rear, Adjusting
- the 6 M6 and 1 M8 screws and the 2 nuts of the plate bracket
- the plate bracket
- the inner and outer weatherstrip
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat.
