Gear Selector Lever Assembly, Replacing

Gear selector lever assembly, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Removing the center console
Remove center console. See: Center console, replacing

Removal
Removing gear selector knob and boot
Remove the gear selector lever knob. See: Gear selector lever knob, replacing

Removing the gear selector cables

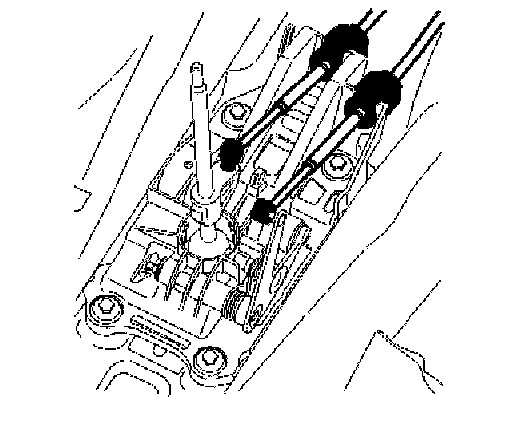

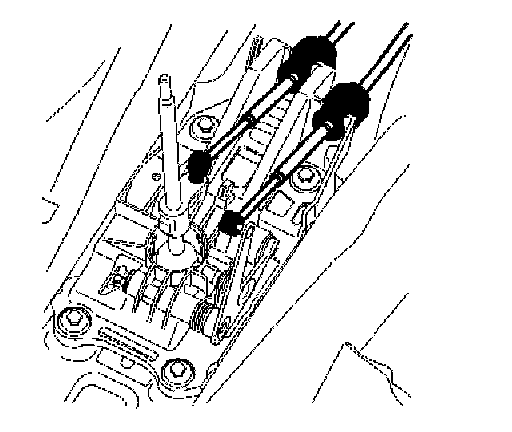

Hint: The screw on the puller is turned counterclockwise to pull the gear selector cable loose. Remove the gear selector cables from the ball connectors. Use: 999 7071.

Removing the gear selector assembly

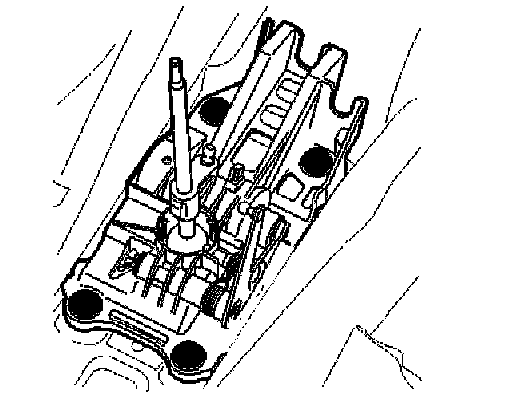

Remove the 4 screws. Remove the gear selector assembly.

Installation

Note: For tightening torques, See: Specifications.

Installing the gear selector assembly

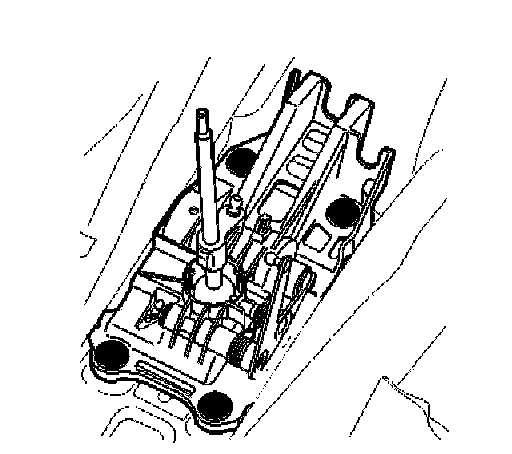

Install:





- the gear selector assembly
- the 4 M8 screws.

Installing the gear selector cables
Install by hand:





- the gear selector cables in the end of the gear selector assembly
- the ball joints for the gear selector cables.

Installing gear selector knob and boot
Install the gear selector lever knob. See: Gear selector lever knob, replacing.

Installing the center console
Install the center console. See: Center console, replacing -
