Manual Transmission/Transaxle: Adjustments

Transmission cable, adjusting

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Adjustment

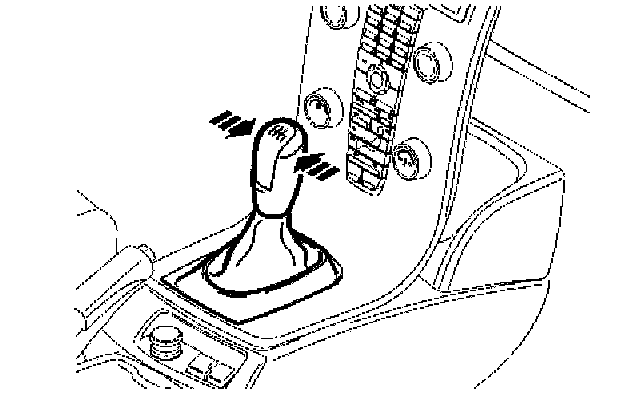

Locking the gear travel





Select third gear with the gear selector lever.

Adjusting the mechanical transmission cable

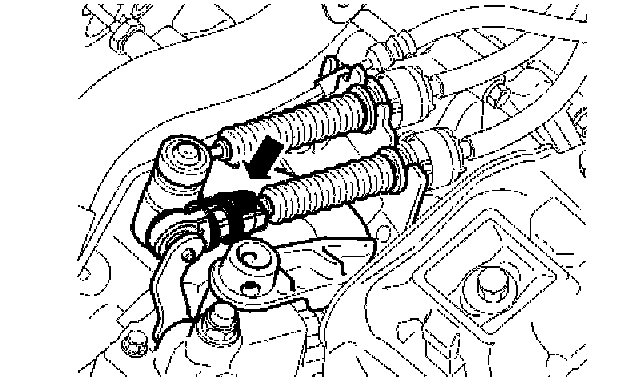

Release the lock button for the cable adjuster.





Check that the springs in the gear selector assembly hold the gear selector lever centered.

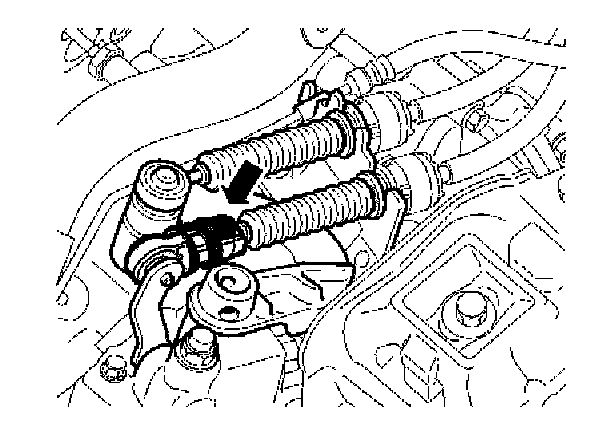

Press in the lock button for the cable adjuster.

Finishing

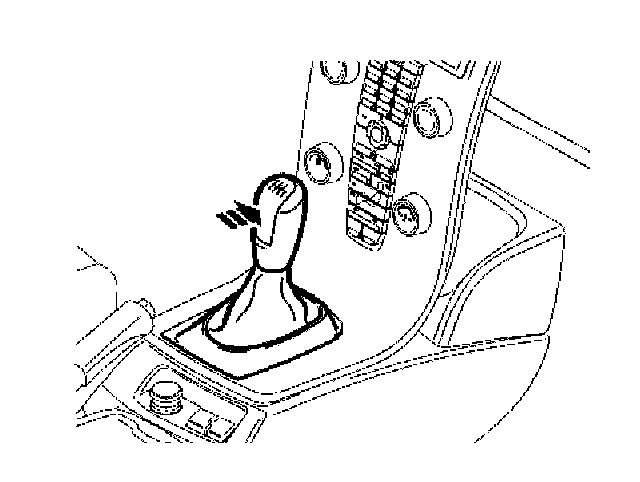

Check
Check the gear positions.
