Sealing Ring Oil Pump, Replacing

Sealing ring oil pump, replacing
Special tools: 999 5069, 999 5117

Note: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information is always correct.

Removal
Removing the transmission
Remove the transmission. See: Transmission, removing

Removing the torque converter
Pull the torque converter straight out of the transmission. Check the torque converter throat for damage.

Removing the sealing ring from the oil pump

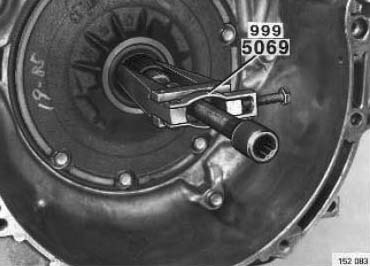

Use extractor 999 5069

Installation

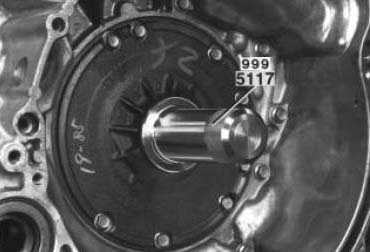

Installing a new sealing ring on the oil pump Use drift 999 5117.

Installing the torque converter





Lubricate the torque converter throat with ATF oil.

Note: Take care not to damage the oil pump during installation.

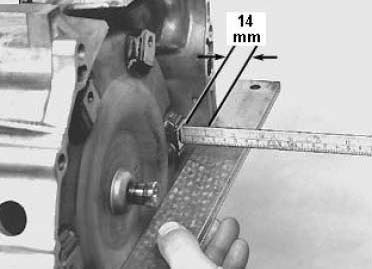

Make sure torque converter is as far into the transmission as possible. Check with a ruler. The distance between the cover and retaining tabs must be approximately 14 mm.

Installing the transmission
Install the transmission. See: Transmission, installing
