Front

Anti-roll bar link front, replacing

Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

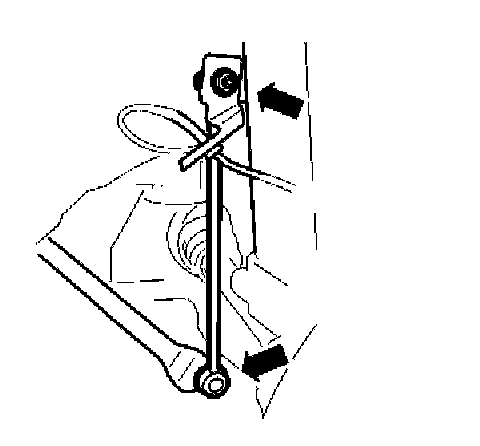

Removing the front anti-roll bar link
Remove:





- the wheel
- the anti-roll bar link from the 2 mountings.

Note: Use a Torx-wrench as a counterhold so that the boot is not damaged.

Installation

Note: For tightening torques, See: Specifications.

Installing the front anti-roll bar link
Install:
- the anti-roll bar link
- the 2 M10 nuts. Use new nuts.

Note: Use a Torx-wrench as a counterhold so that the boot is not damaged.

Finishing
Install the wheel.
