Bushing Inner Control Arm Lower, Replace

Bushing inner control arm lower

Special tools:
999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12
999 7034 Connecting rod M12X400 999 7034 Connecting Rod M12X400
999 7035 Sleeve 999 7035 Sleeve
999 7141 Support 999 7141 Support
999 7142 Drift 999 7142 Drift

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Remove the wheels.

Removal

Removing the control arm
Remove the control arm. See: Rear lower arm Control Arm Lower, Replacing.

Removing the bushing

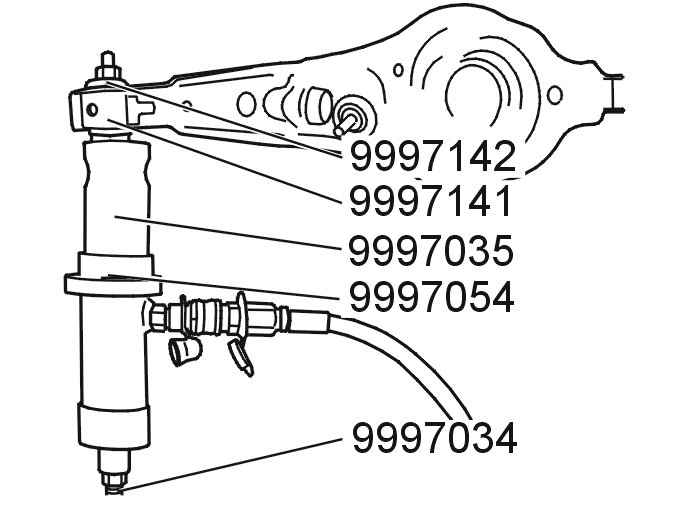

Install the control arm as illustrated.
Install the hydraulic cylinder as illustrated.
Use: 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12 with: 999 7034 Connecting rod M12X400 999 7034 Connecting Rod M12X400 M12x400 , socket: 999 7035 Sleeve 999 7035 Sleeve , support: 999 7141 Support 999 7141 Support and drift: 999 7142 Drift 999 7142 Drift.
Pull the bushing out.

Note! The bushing is tapered and must be pulled down as shown.

Installation

Installing the bushing

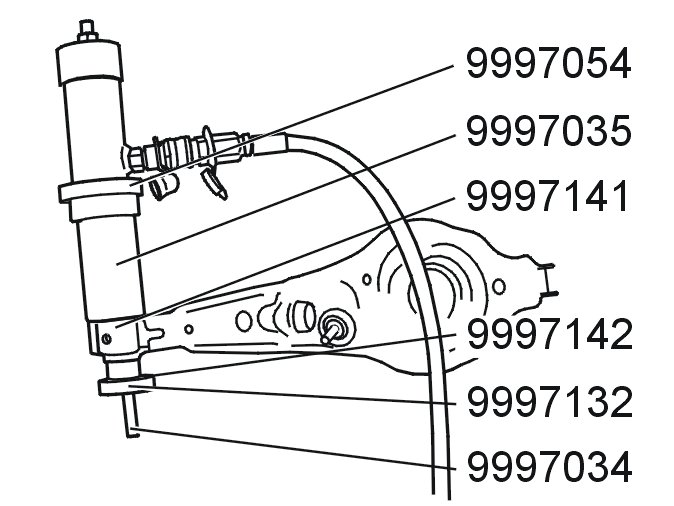

Install the hydraulic cylinder as illustrated.
Use: 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12 with: 999 7034 Connecting rod M12X400 999 7034 Connecting Rod M12X400 M12x400 , socket: 999 7035 Sleeve 999 7035 Sleeve , support: 999 7141 Support 999 7141 Support and drift: 999 7142 Drift 999 7142 Drift.
Pull in the bushing until it is centered in the control arm.

Note! The bushing is conical and must be pulled in as illustrated.

Installing the control arm
Install the control arm. See: Rear lower arm Control Arm Lower, Replacing.

Finishing

Install the wheels. See: Wheels Service and Repair.
