Starter Motor: Service and Repair

Starter motor

Operation number: 33118-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- battery negative lead. Refer to: Battery Disconnecting

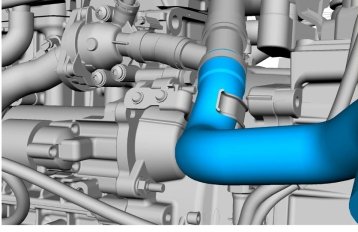

- the air cleaner housing. Refer to: Air filter module, B5254T7 Service and Repair.

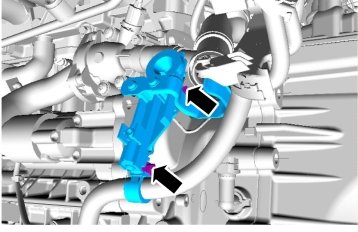

Torque: M6, 10 Nm

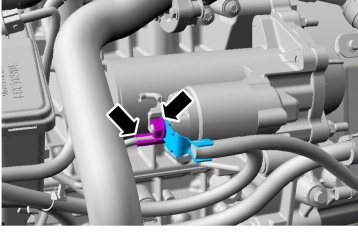

Torque: Battery positive cable to starter solenoid, 11 Nm

Torque: Start impulse lead , 8,5 Nm

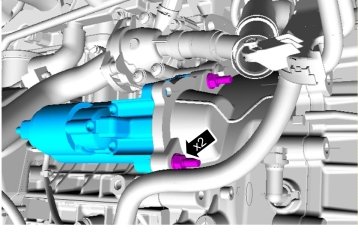

Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure
