Extra Power Socket 12V, Luggage Compartment

Extra power socket 12V, luggage compartment

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Ignition off





Ignition off

Removing electric power outlet luggage compartment

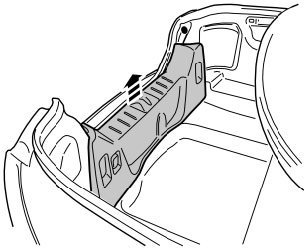

Remove the sill cover and part the connector in the luggage compartment by lifting it straight up. 6 concealed clips and 2 guides.

Remove:





- the plastic nut, x1
- the electric power outlet.

Installation

Installing electric power outlet luggage compartment

Install:
- the electric power outlet
- the plastic nut, x1
- the sill cover and the connector.

Function test
Test the function.
