Alternator Pulley / Clutch: Service and Repair

Generator pulley, generator

Special tools:
999 5761 Socket 999 5761 Socket
999 7113 Spanner 999 7113 Spanner

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Disconnecting the battery lead
Disconnect the battery negative cable. See: Battery Disconnecting

Removal

Removing pulley
Remove the generator (GEN). Service and Repair

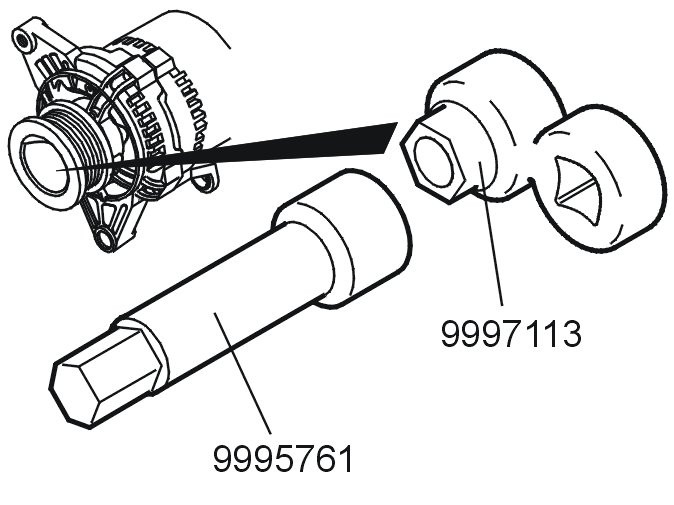

Remove the belt pulley from the rotor shaft, use tool:
999 7113 Spanner 999 7113 Spanner
999 5761 Socket 999 5761 Socket
as shown.

Installation

Installing pulley
Screw on the belt pulley and tighten it, use tool:
999 7113 Spanner 999 7113 Spanner
999 5761 Socket 999 5761 Socket

Tighten, see: Tightening torque. [1][2]Specifications

Install the generator (GEN). Service and Repair

Finishing

Installing the battery lead
Fit the battery's negative cable.

Function test
Test the function.
