Home >> Volvo >> 2007 >> C70 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications

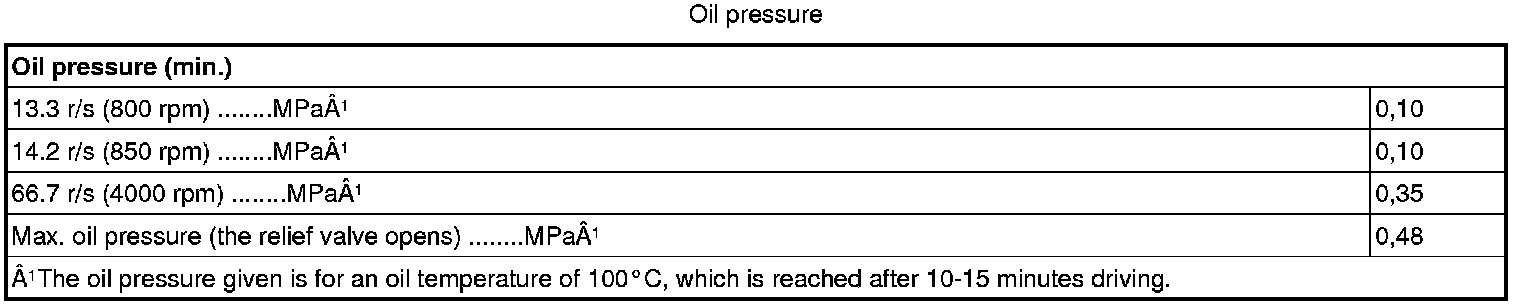

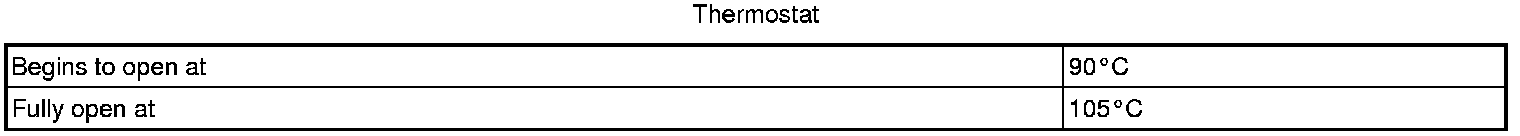

Specifications, mechanical

Note! Some variation in the illustrations may occur, but the essential information is always correct.
