Wheel Stud / Lug Nut
NOTE: This article contains changes called out in TSB# TJ22768.
Wheel to Wheel Hub
Stage 1 20 Nm

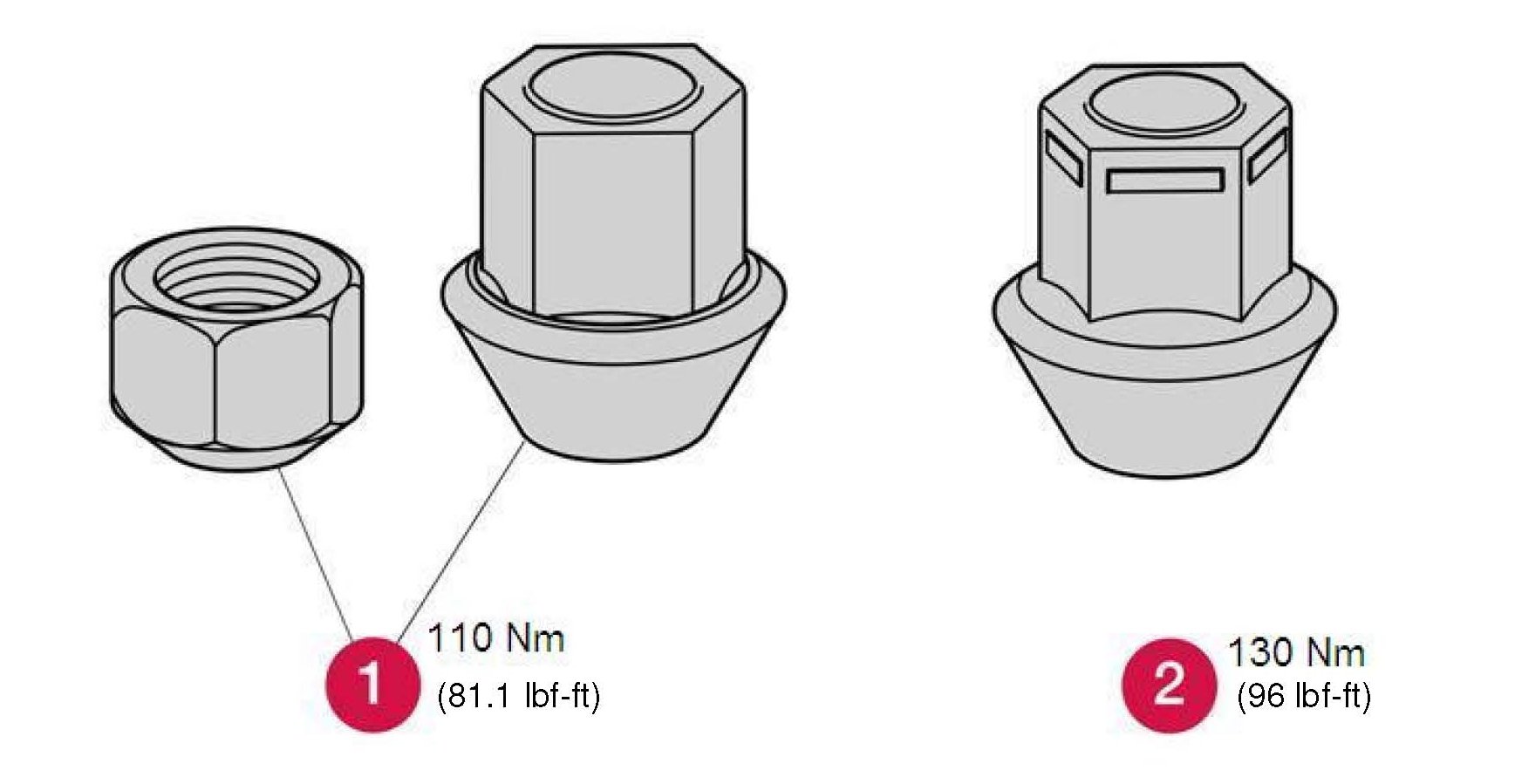

Stage 2 (Type 1 Wheel Nut) 110 Nm (81.1 lbf-ft)
Stage 2 (Type 2 Wheel Nut) 130 Nm (96 lbf-ft)
NOTE: This article contains changes called out in TSB# TJ22768.
Wheel to Wheel Hub
Stage 1 20 Nm
Stage 2 (Type 1 Wheel Nut) 110 Nm (81.1 lbf-ft)
Stage 2 (Type 2 Wheel Nut) 130 Nm (96 lbf-ft)
