Instrument Cluster / Carrier

Signal Description, Driver Information Module (DIM)

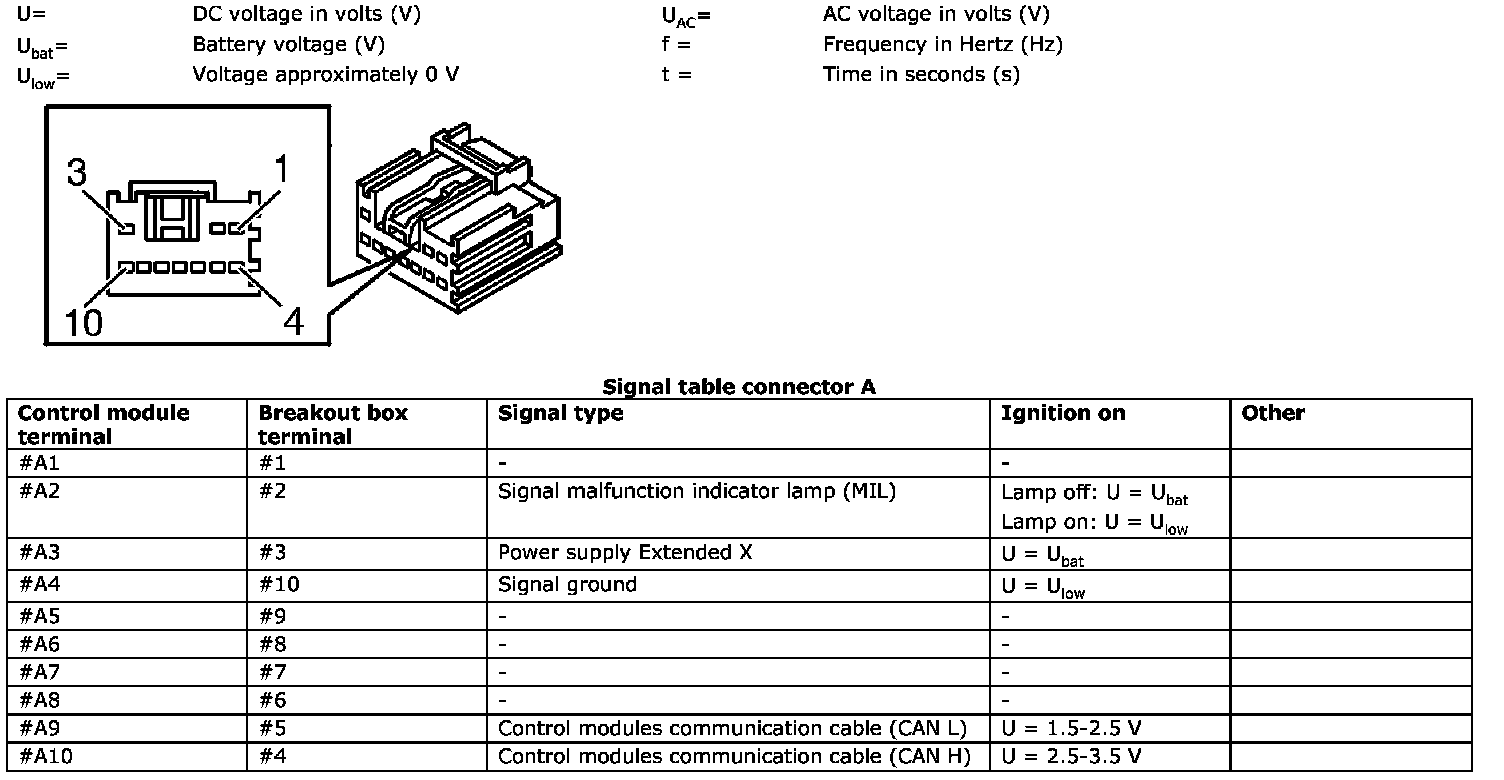

Signal specification

General
All values contained below are between the relevant terminal and signal ground, unless otherwise indicated in brackets.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.
