Body Control Module

Signal Description, Accessory Electronic Module (AEM)

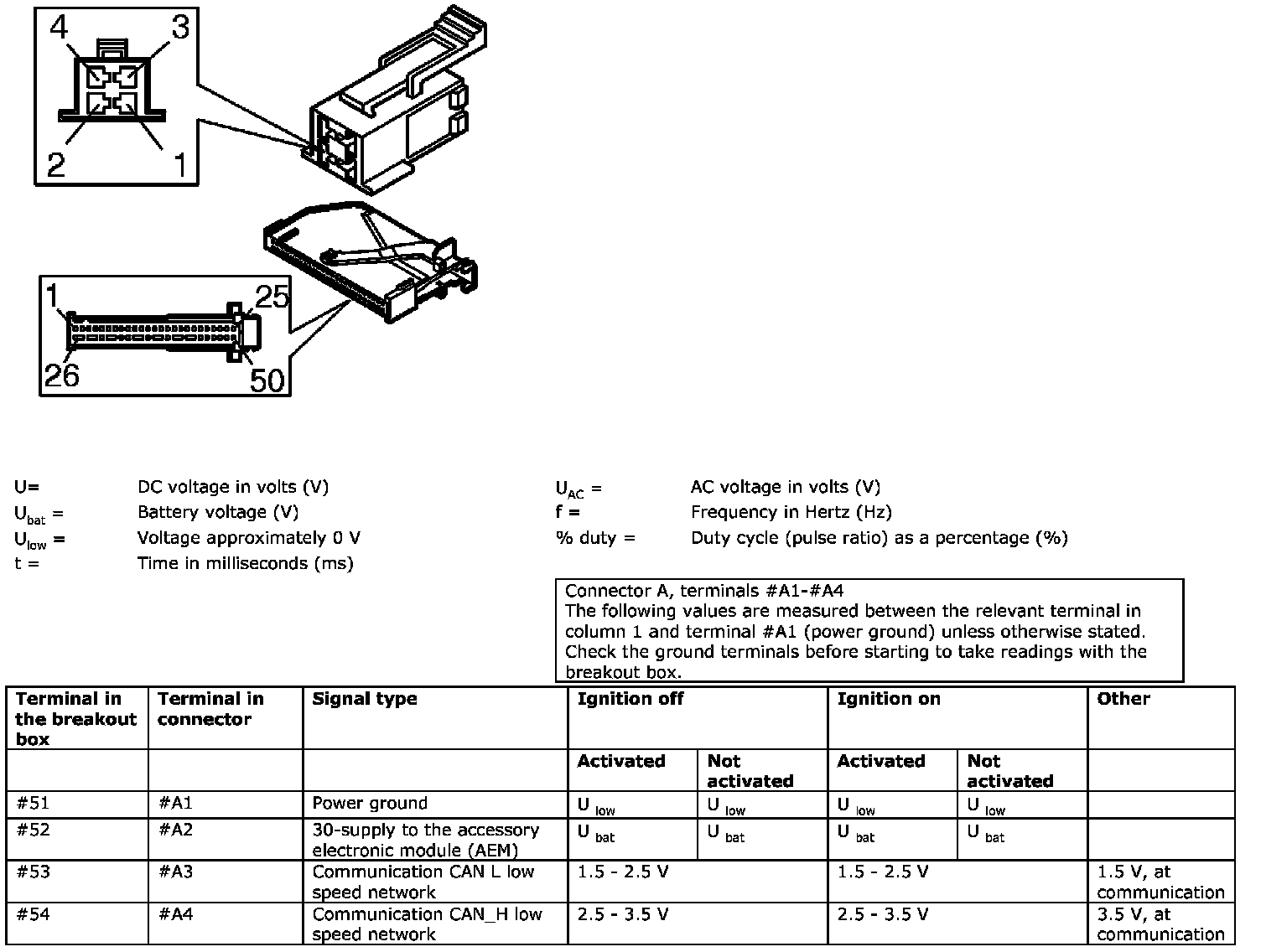

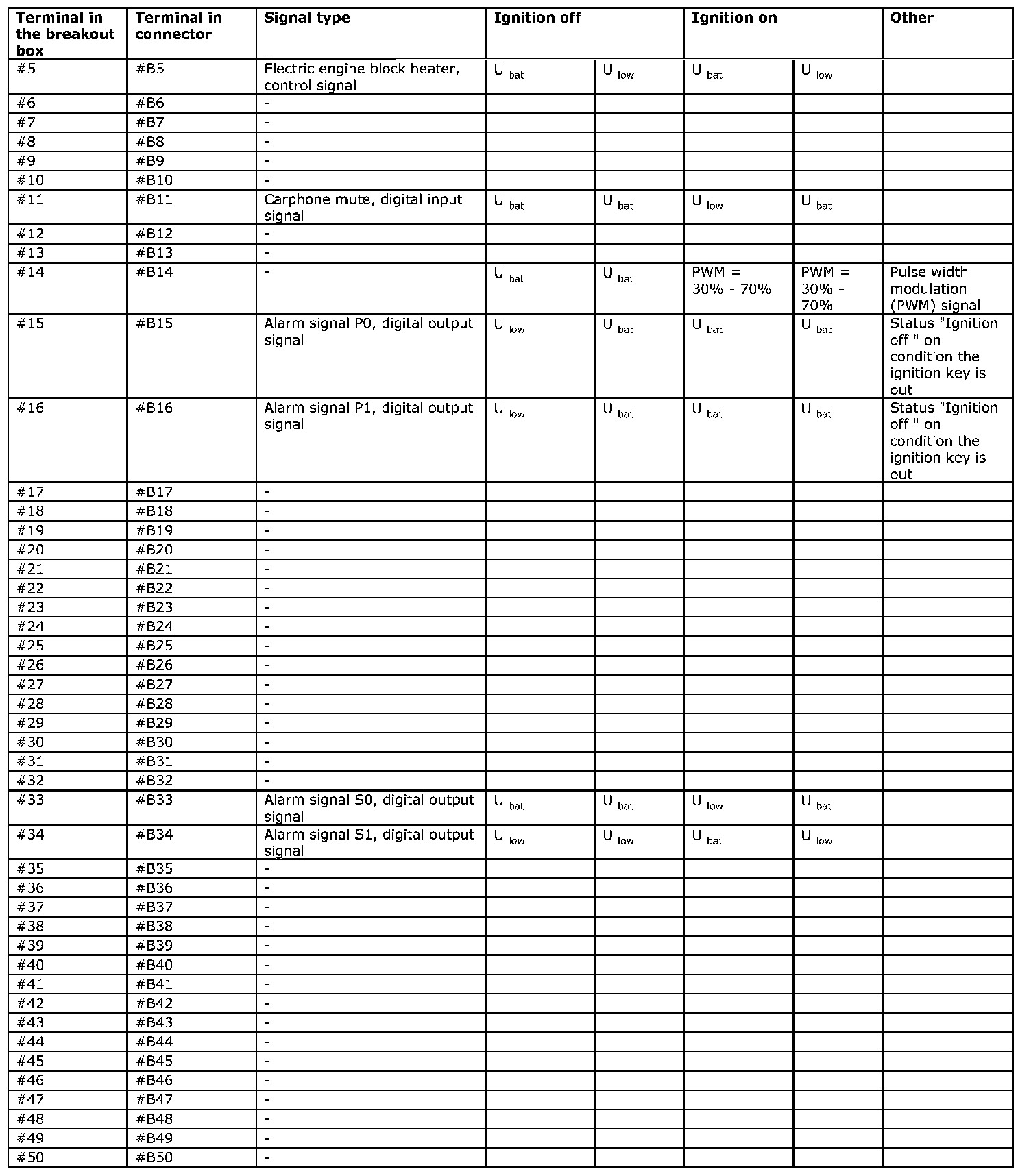

Signal specification

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.
