Signal Description, Multimedia Module (MMM)

Signal Description, Multimedia Module (MMM)

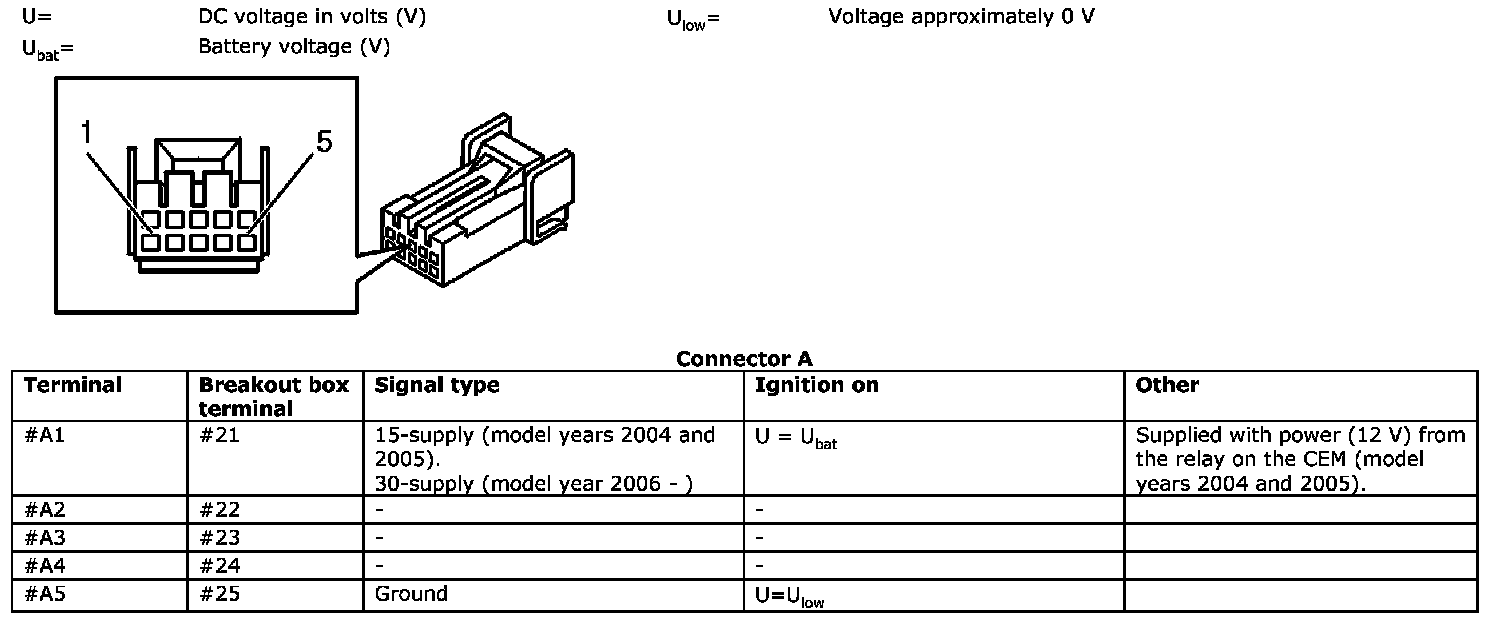

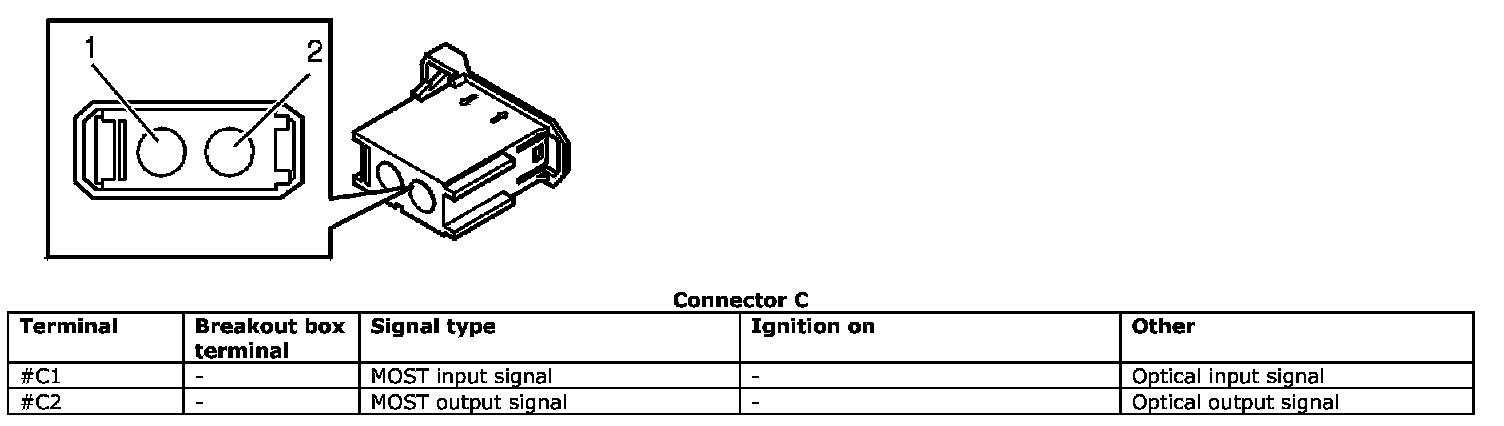

Signal specification

General
All the values given below are between the respective terminal in column 1 and terminal #A5 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.
