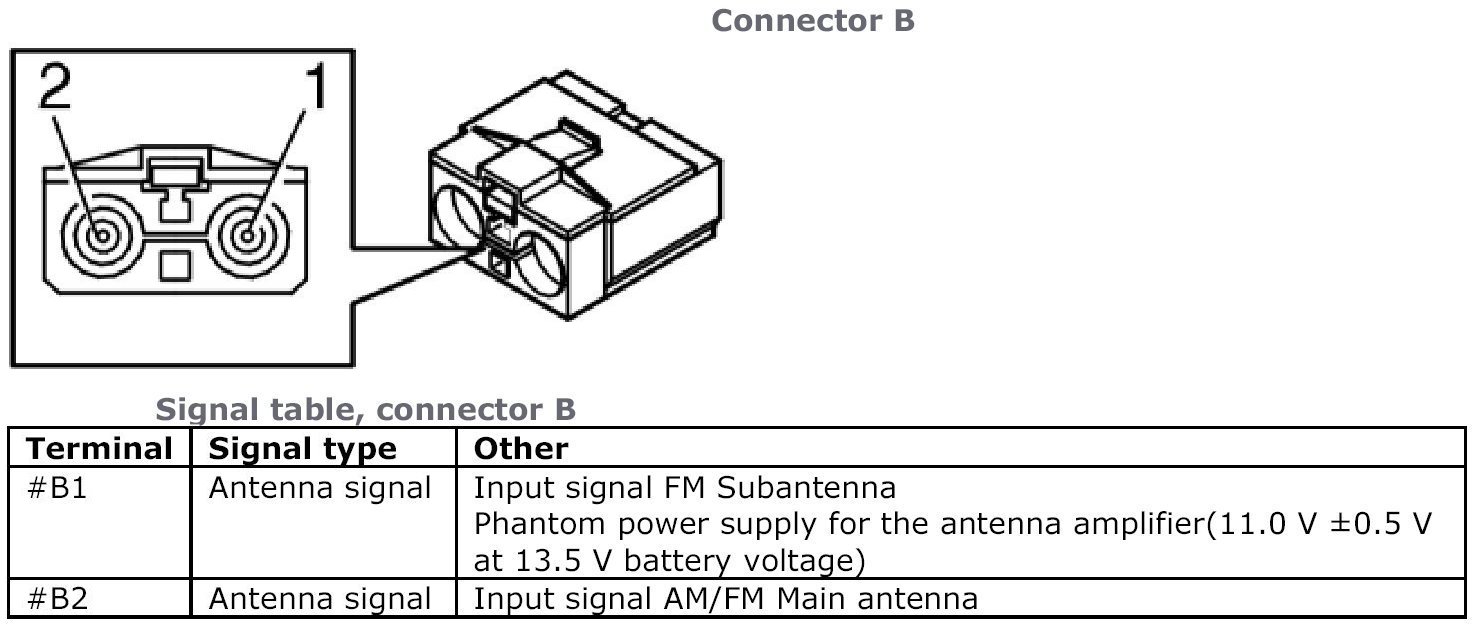

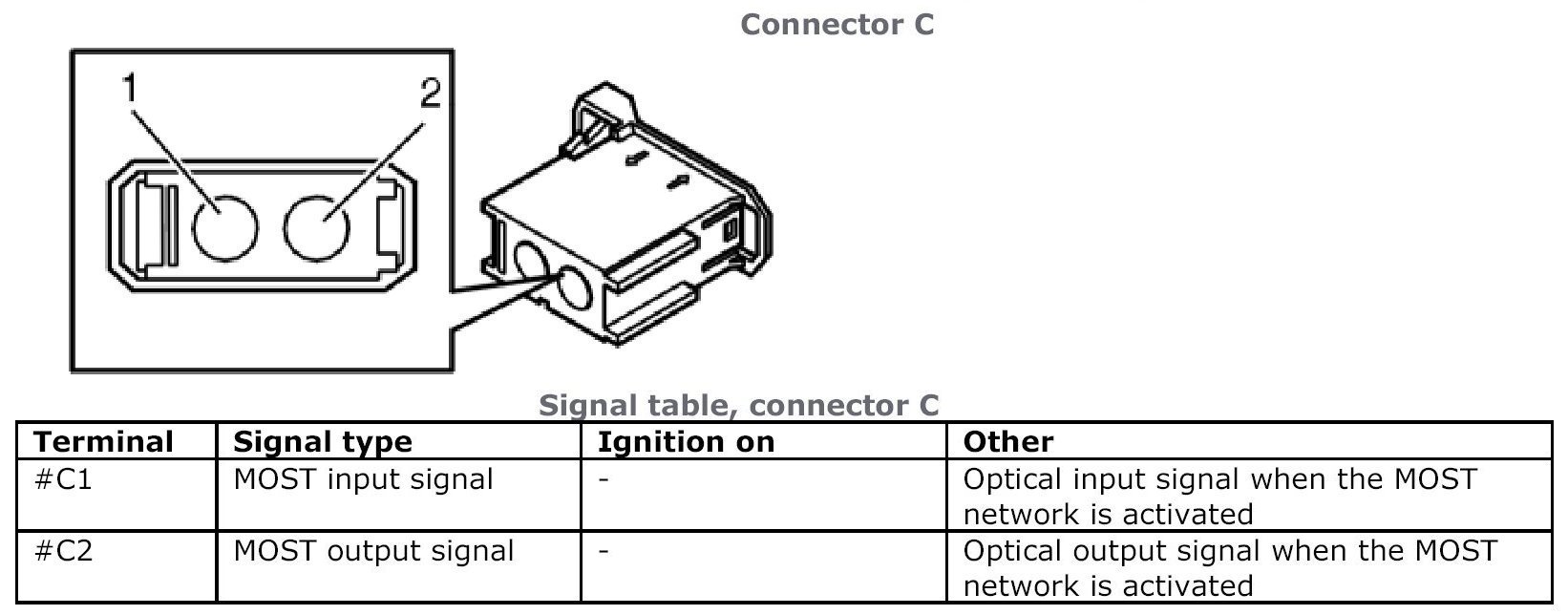

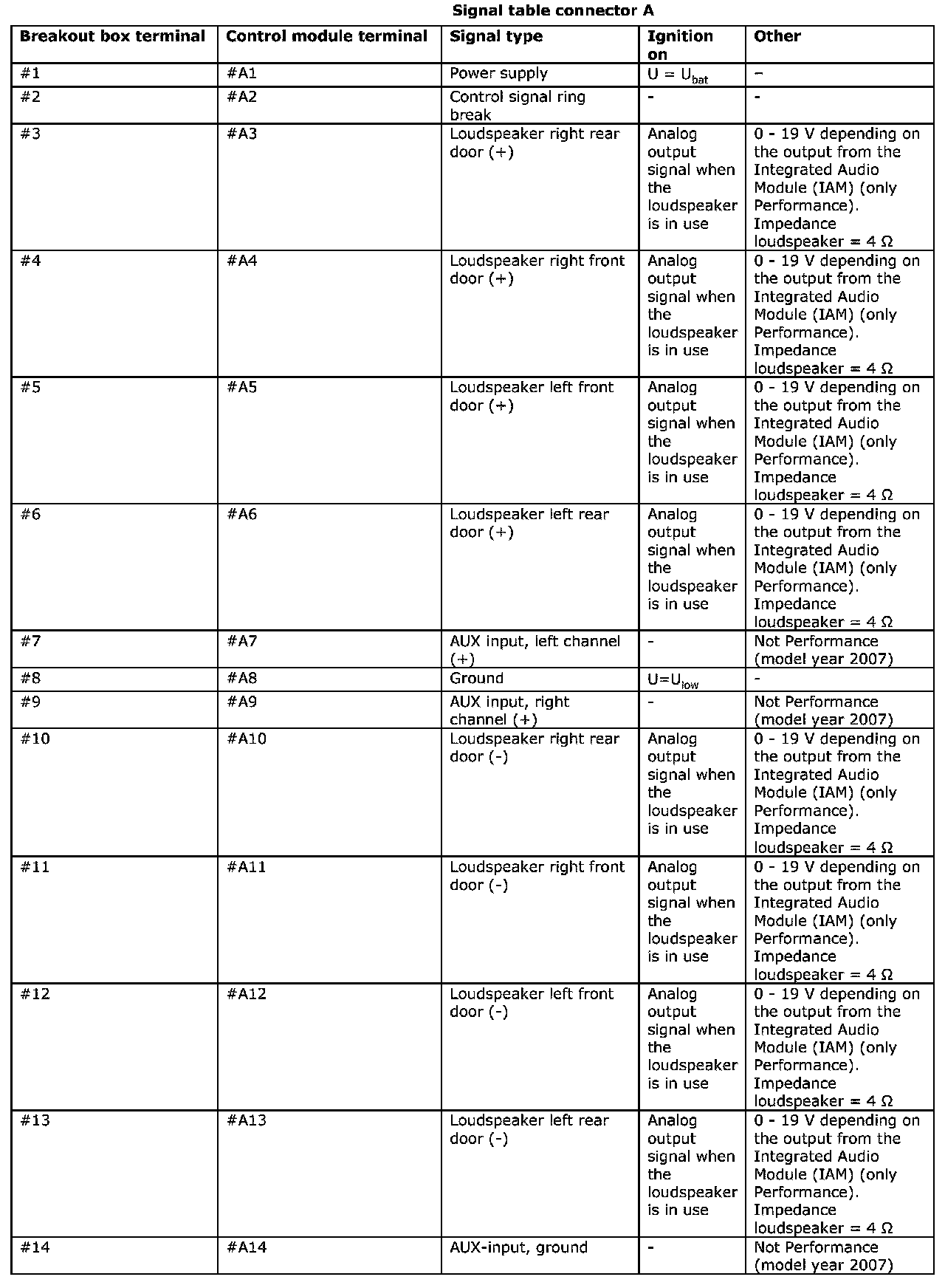

Signal specification

General
All the values given below are between the terminals stated in column 1 and terminal #A8 in column 2 (power ground). This applies unless otherwise indicated in brackets.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.
