Signal Description, Audio Module (AUD)

Signal description, audio module (AUD)

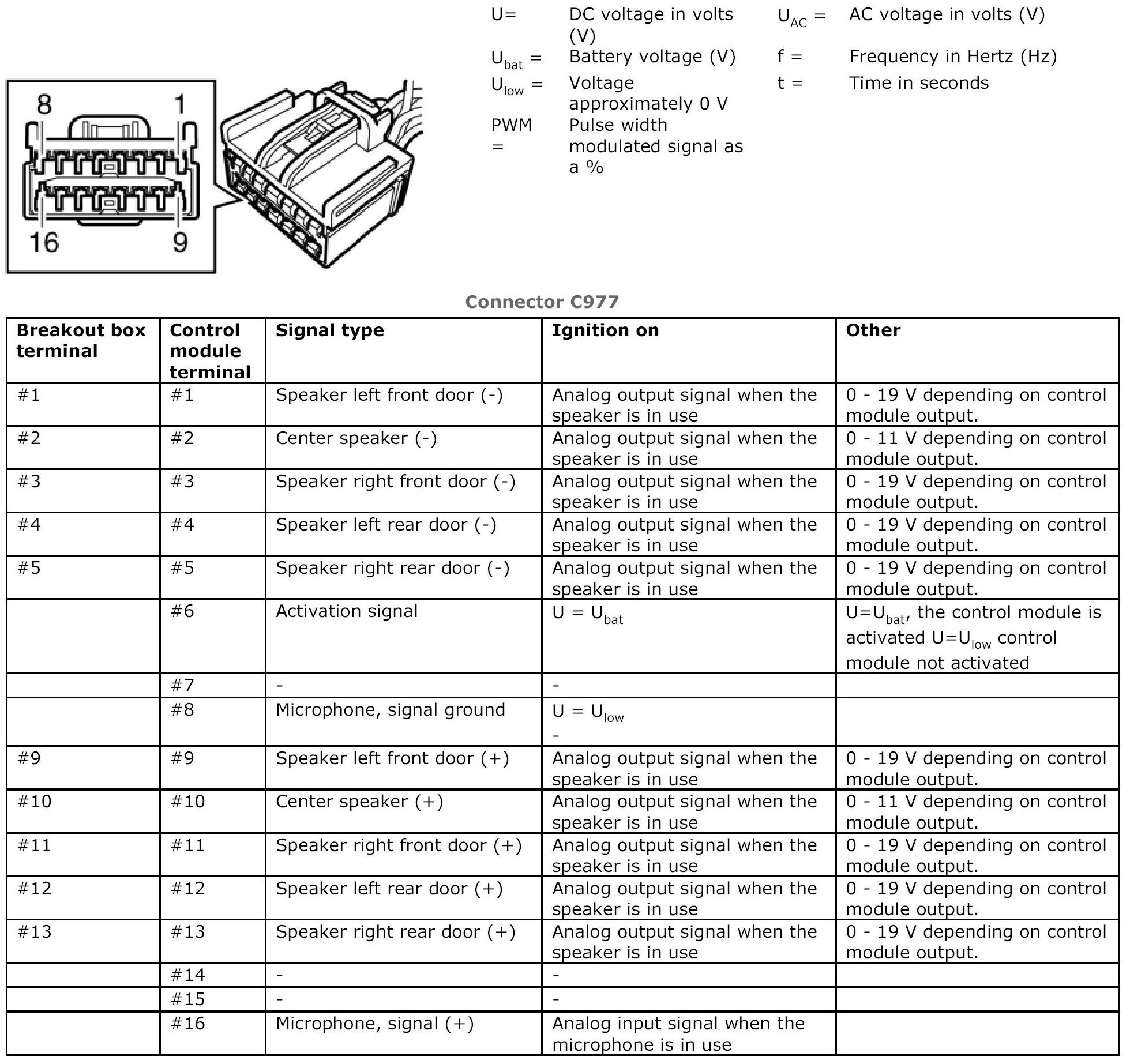

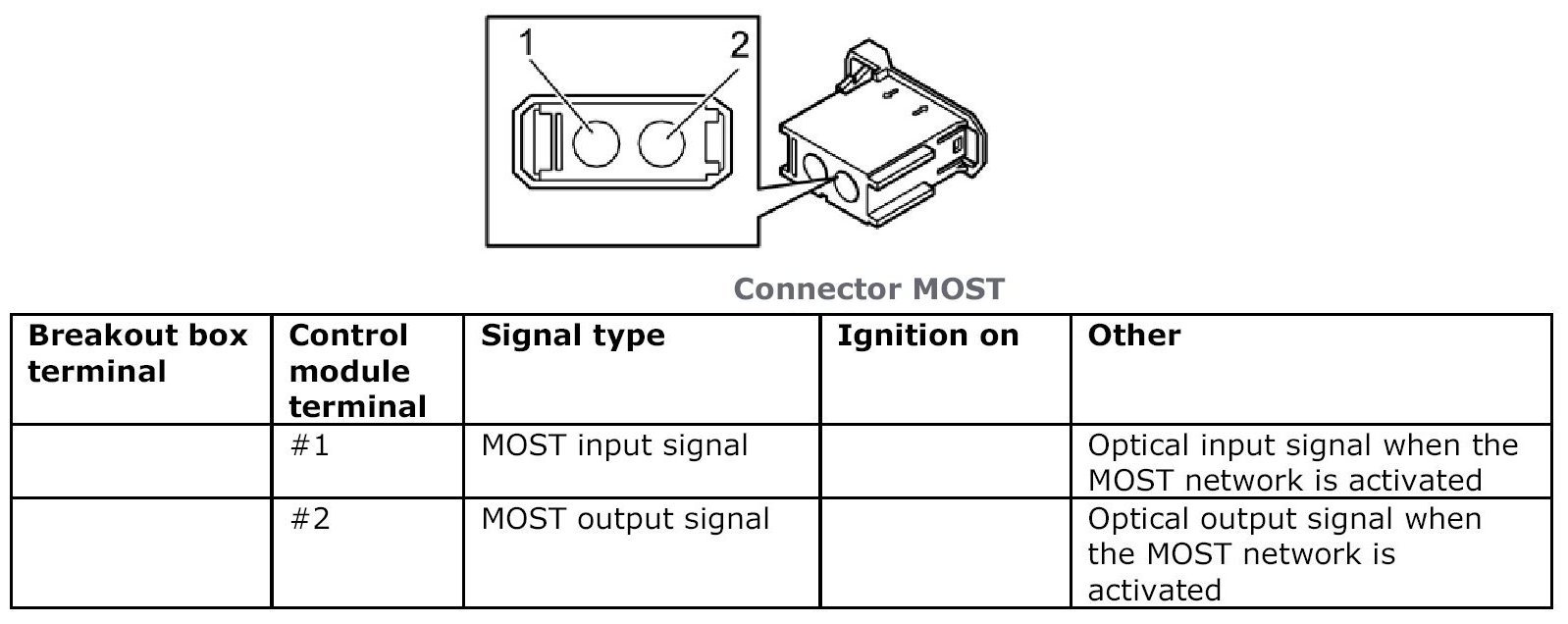

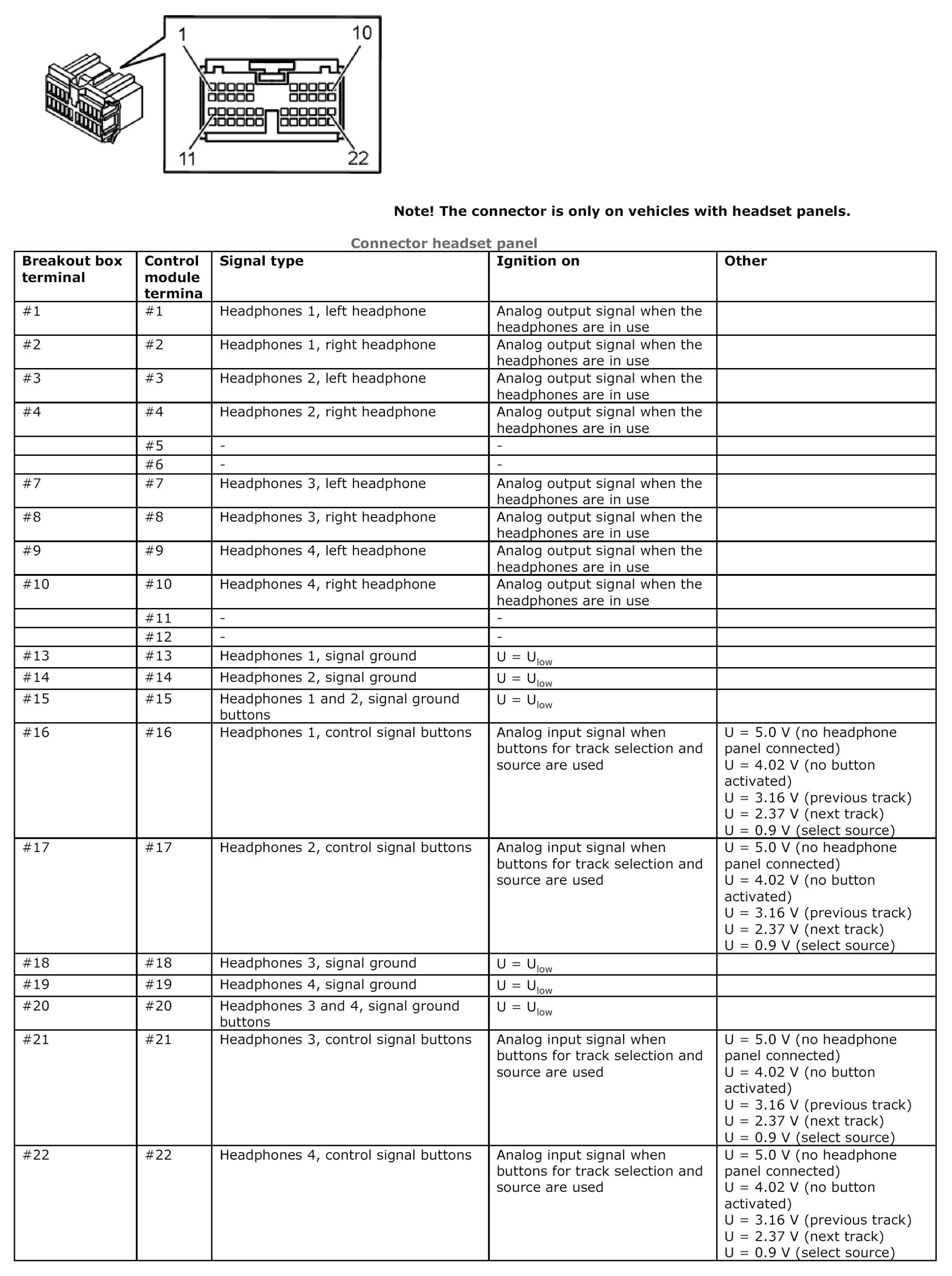

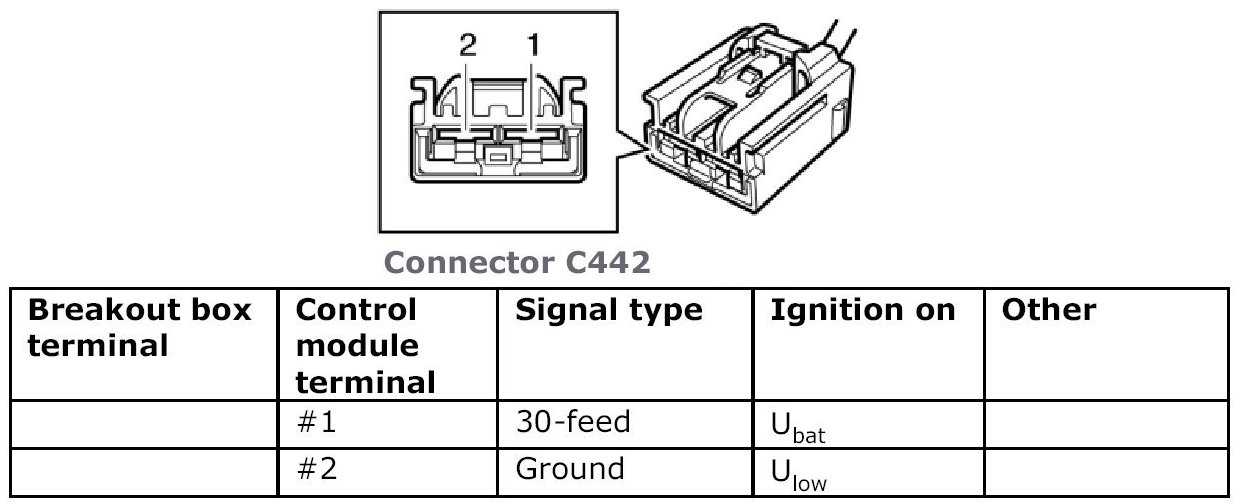

Signal specification

General
