Parking Brake Warning Switch: Service and Repair

Handbrake switch

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Remove center console.

Removal

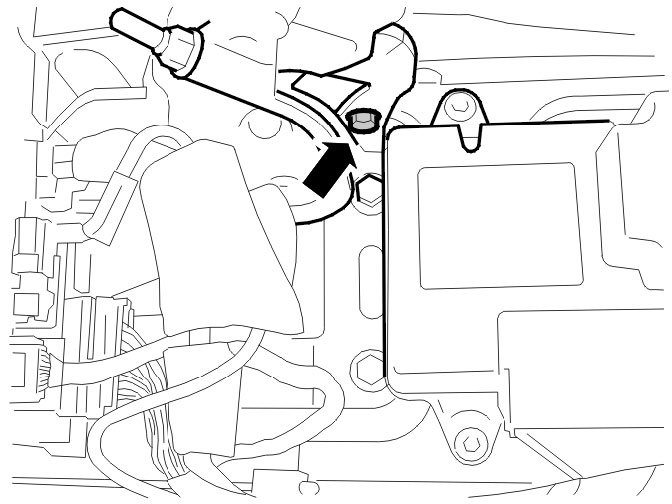

Removing the parking brake switch

Remove:





- 1 screw
- the connector
- the brake switch.

Installation

Installing the parking brake switch

Install:
- the brake switch
- the 1 M6 screw
- the connector.

Finishing
Install the center console.
