Child Seat Eyelets

Child seat eyelets




















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Child seat eyelets




- Fold the passenger seat backrest forward.

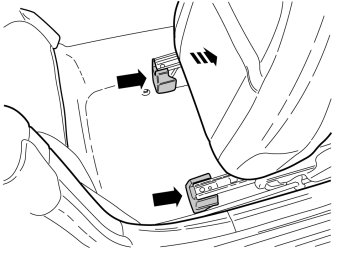

- Slide the front seat as far forward as possible so that the seat coulisses are visible.

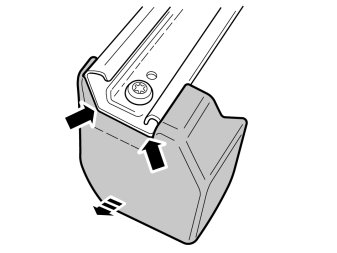

- Remove the seat coulisse on the left side by using a screwdriver to pry between the coulisse and the seat rail while guiding the coulisse rearward. Do the same on the right side of the seat.

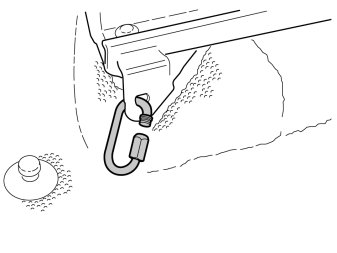

- Fit the eyelet through the square hole on the left seat coulisse. Do the same on the right side.

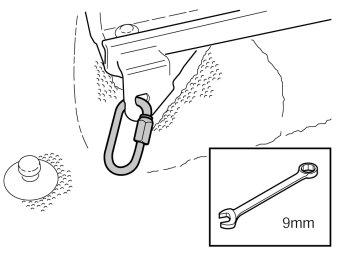

- Tighten the nut jacket on the eyelet on the left and right side.

Note! Store the removed seat coulisses in a suitable spot so that they can be reinstalled if the child seat eyelets are removed.
