Navigation System Module

Navigation System Module

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Fold out the right-hand side panel in the cargo compartment. See: Side panel loadspace Side Panel Loadspace.

Removal

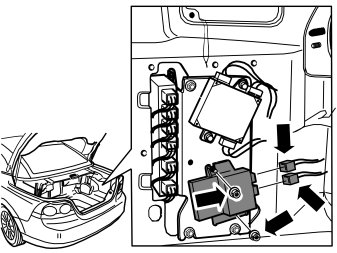

Removing the Global positioning system module (GPS)





Remove:
- the connectors
- the 2 screws
- the control module.

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications.

Installing the Global positioning system module (GPS)

Note! Check that there is no dirt in the optical connectors.

Install:
- the control module
- the 2 screws
- the connectors.

Finishing

Installing side panel cargo compartment
Install the right-hand side panel in the cargo compartment. See: Side panel loadspace Side Panel Loadspace.

Programming the Global positioning system module (GPS)
Program the new global positioning system module (GPS). See: 30775733.
