Location of Components, Integrated Audio Module (IAM)

Location of components





Overview
1. FM2 antenna.
2. Speaker.
3. Integrated audio module (IAM).
4. Speaker.
5. AM/FM1 antenna.
6. AM/FM1/FM2 antenna.
7. Antenna amplifier

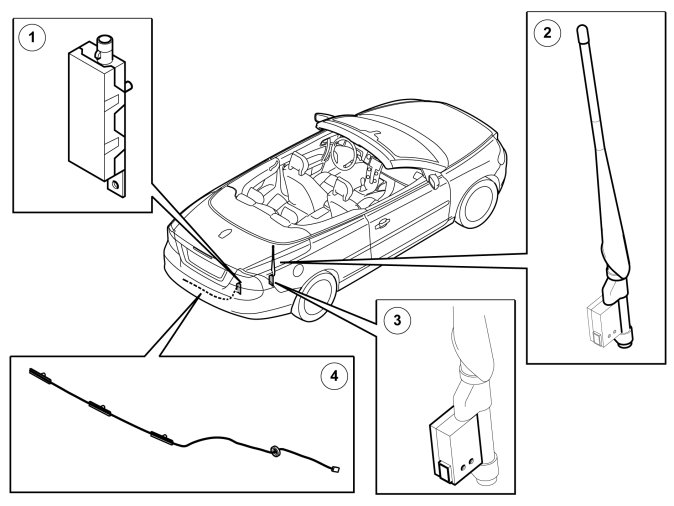

Antenna location C70,

Antenna Location C70:

Antenna location C70,
1. Antenna amplifier FM2.
2. AM/FM1 antenna.
3. Antenna amplifier AM/FM1.
4. FM2 antenna.
