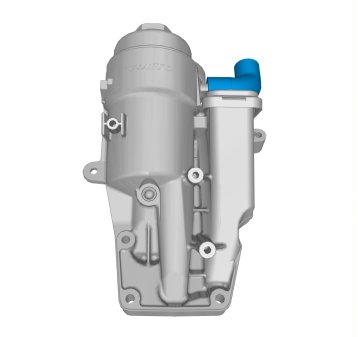

Oil Trap

Oil trap

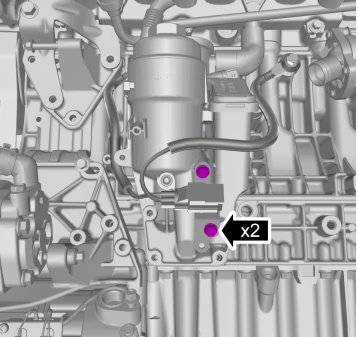

Removal

Battery, disconnection Refer to: Battery Disconnecting

























































Warning! Be prepared to collect escaping fluid.

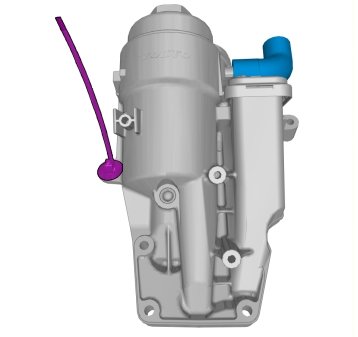

Installation





Caution! Make sure that the gaskets are correctly located.





Note! Make sure that the mating faces are clean and free of foreign material.

Note! Only tighten the bolt finger tight at this stage.

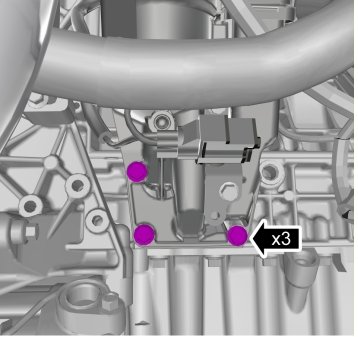

Torque: M7, 17 Nm












Torque: M7, 17 Nm

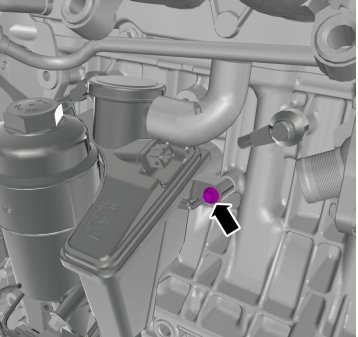

Torque: M6, 10 Nm

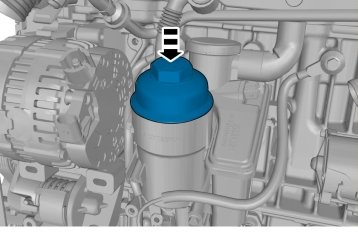

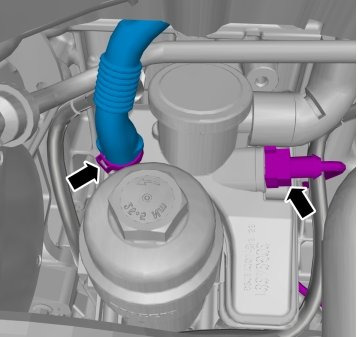

Torque: Cover oil filter, 25 Nm

































Battery, disconnection Refer to: Battery Disconnecting
