Central Electronic Module (CEM)

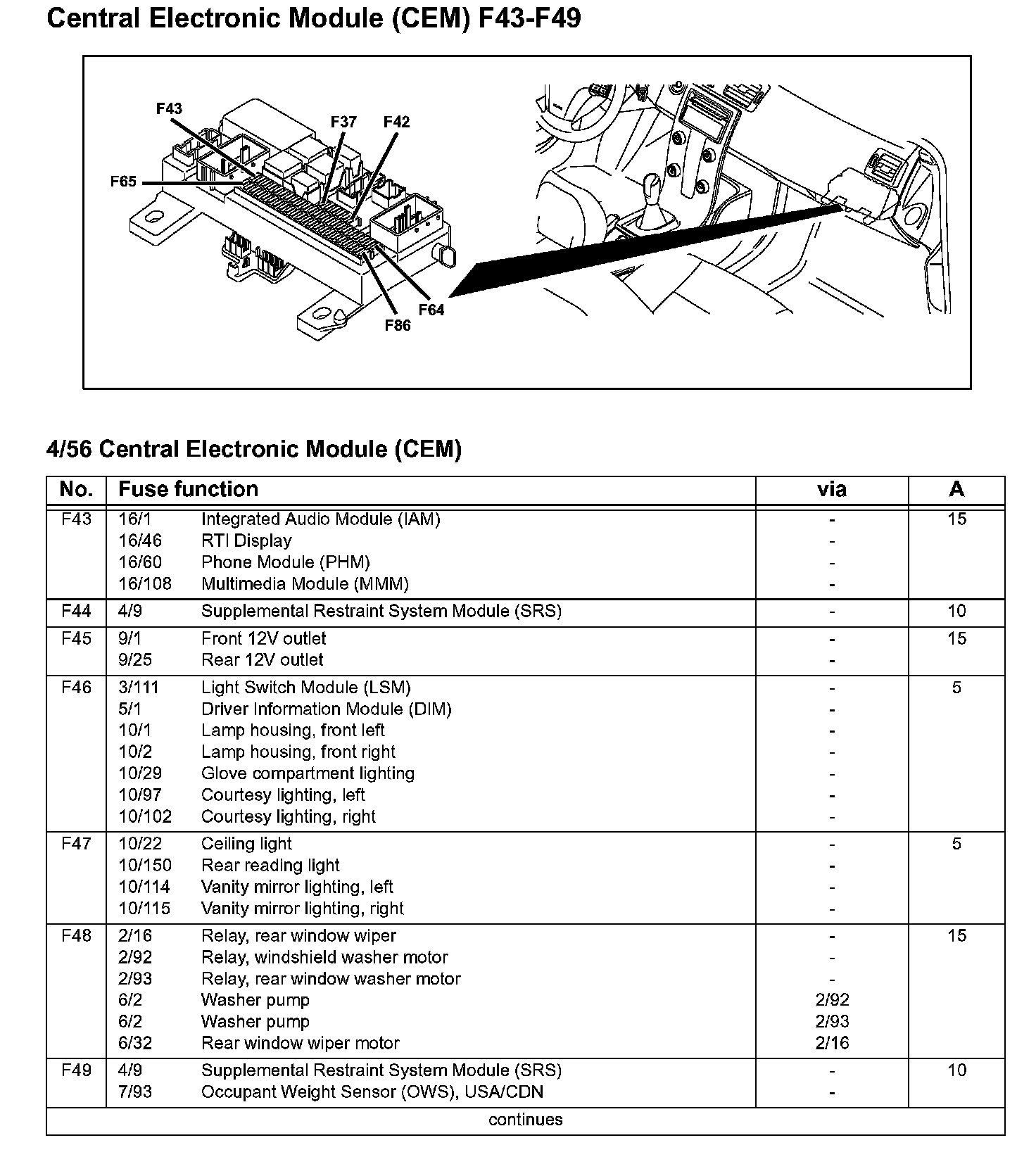

Central Electronic Module (CEM) F43-F49:

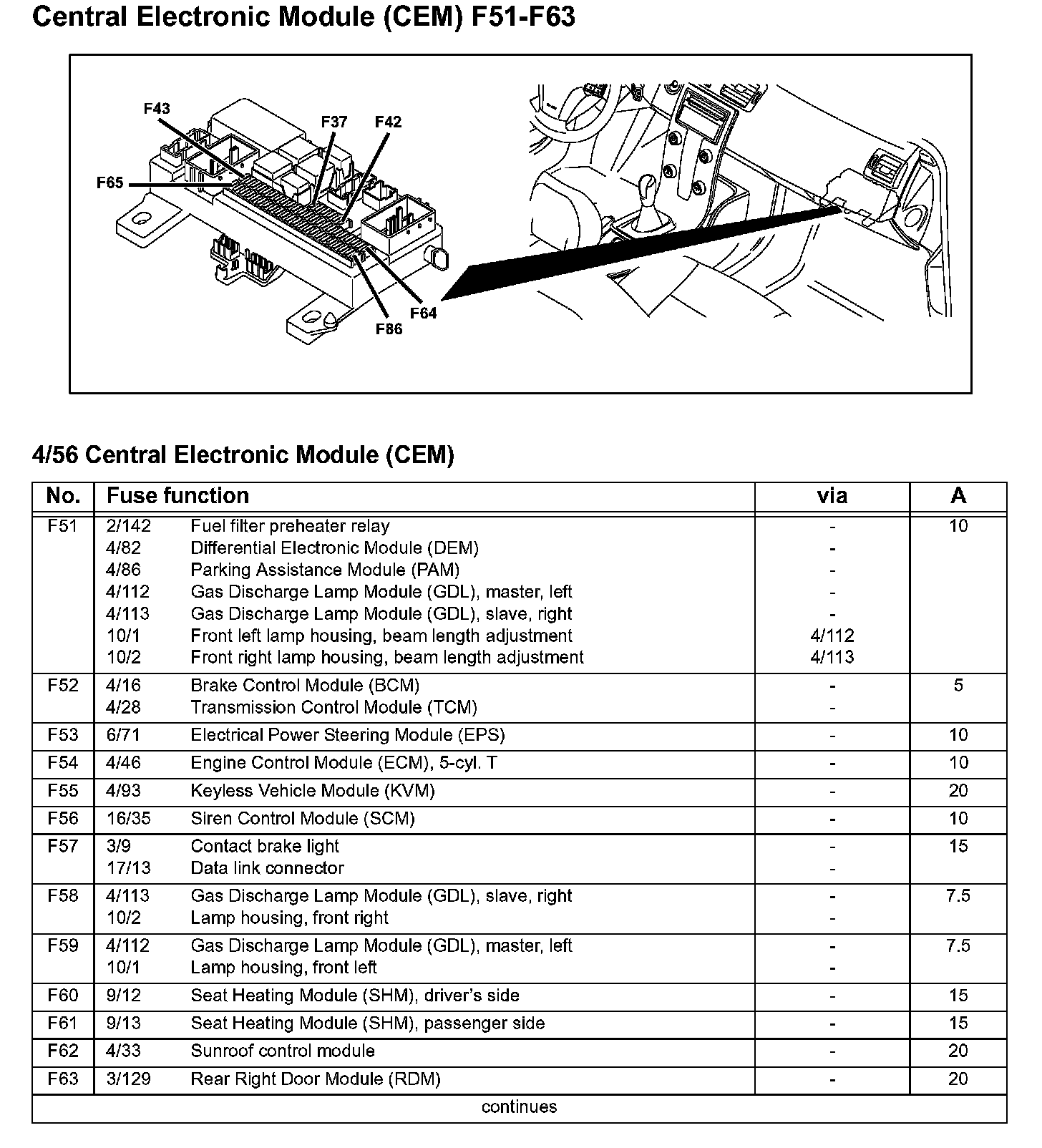

Central Electronic Module (CEM) F51-F63:

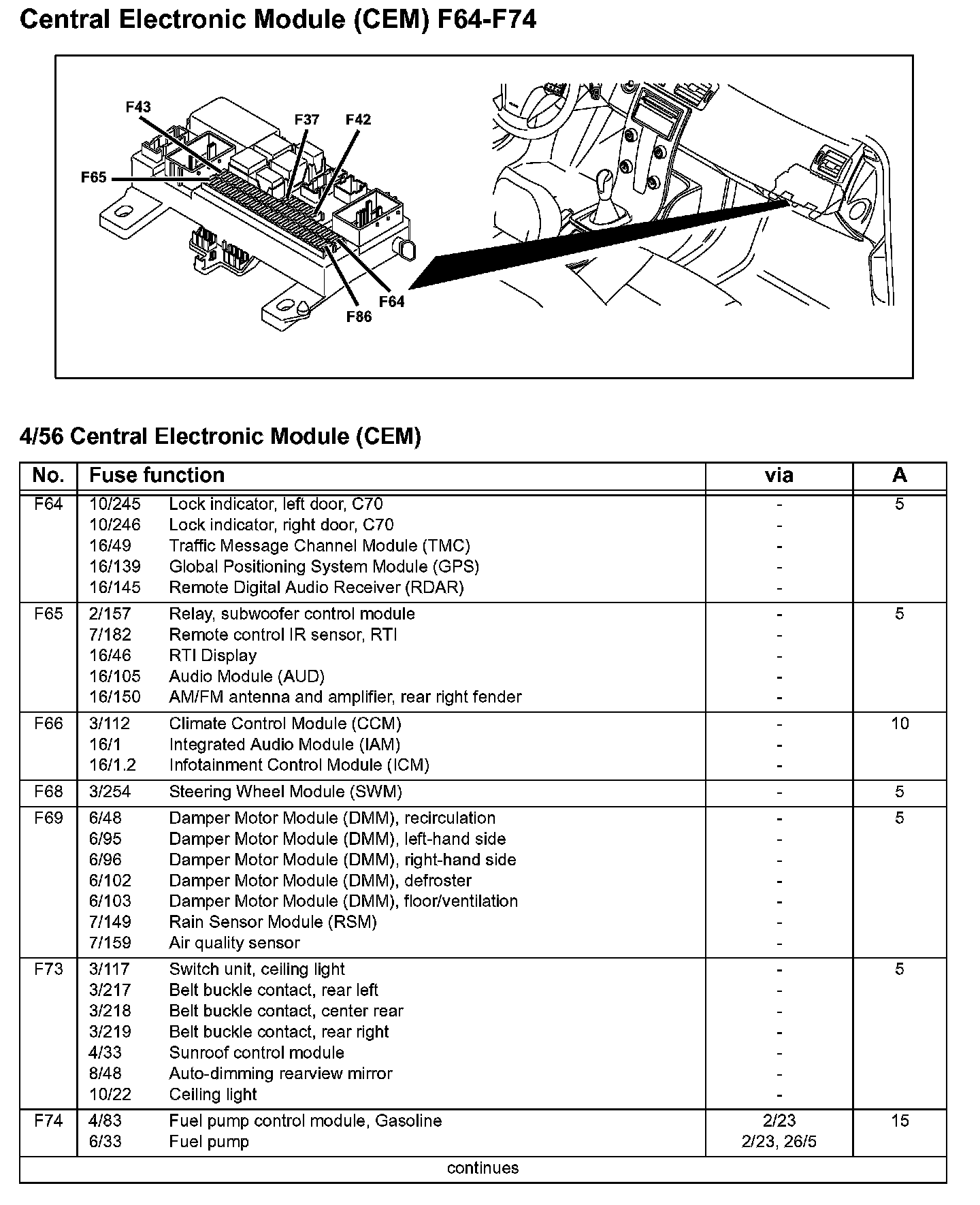

Central Electronic Module (CEM) F64-F74:

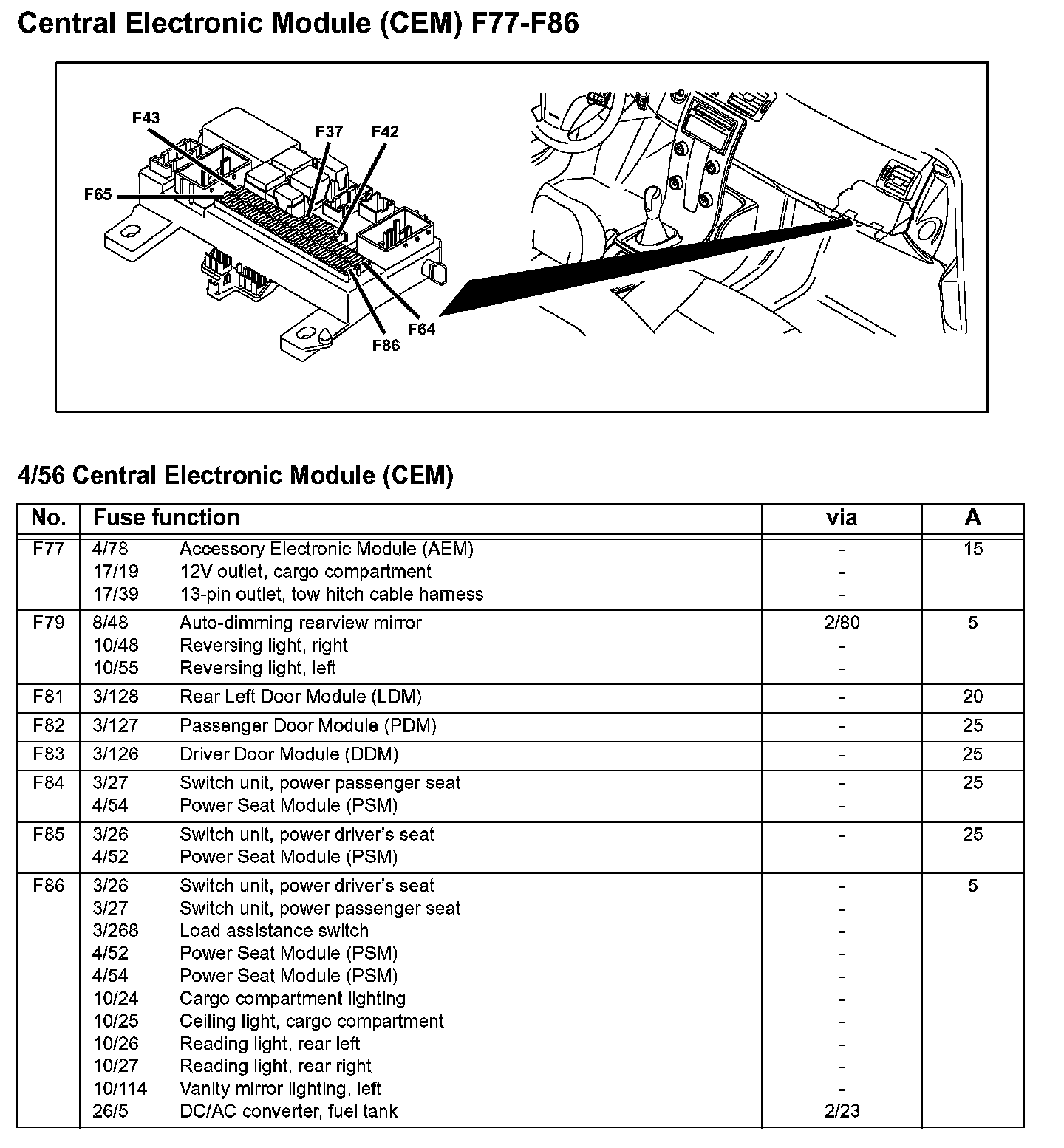

Central Electronic Module (CEM) F77-F86:
