Cabin Air Filter / Purifier: Service and Repair

Pollen filter climate control system

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the accelerator pedal (AP)
Remove the accelerator pedal (AP). See Accelerator pedal Accelerator Pedal.

Removal

Removing the passenger compartment air cleaner (ACL)




Fold the floor carpet out of the way.

Remove:

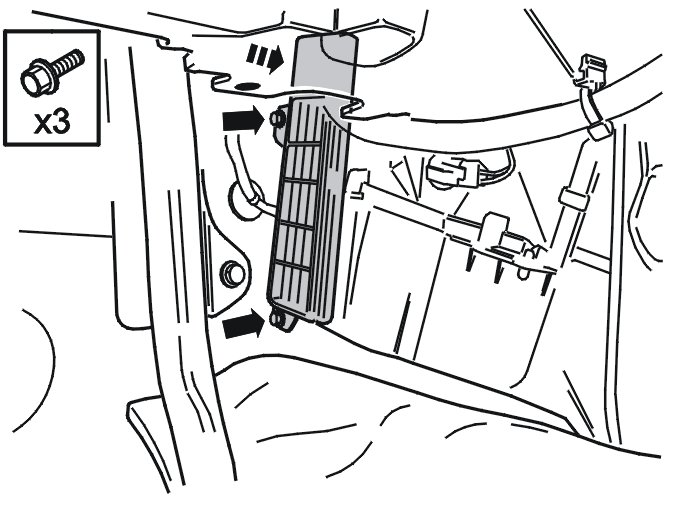

- the 3 screws and raise the cover

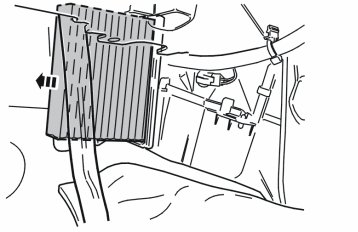

- the filter by pulling it out behind the brake pedal.

Installation

Installing the passenger compartment air cleaner (ACL)

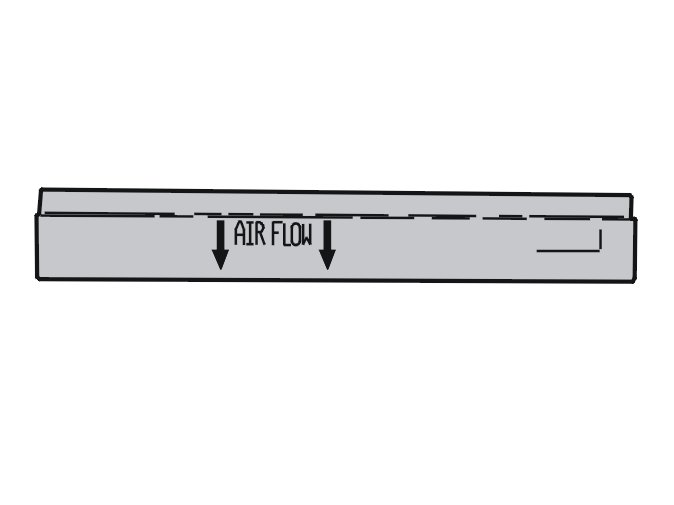

Note! The direction of the air flow is indicated on the top of the filter. Ensure that the filter is installed with the text side facing up and so that the arrows on the filter point straight back into the vehicle.

Install the air filter by compressing it slightly and inserting it behind the brake pedal.
Clamp the cover in place at the rear edge. Screw the cover into place at the front edge using the 3 screws.
Fold back the carpet.
Install the accelerator pedal (AP). See Accelerator pedal Accelerator Pedal.
