Direction Indicators and Hazard Warning Flashers

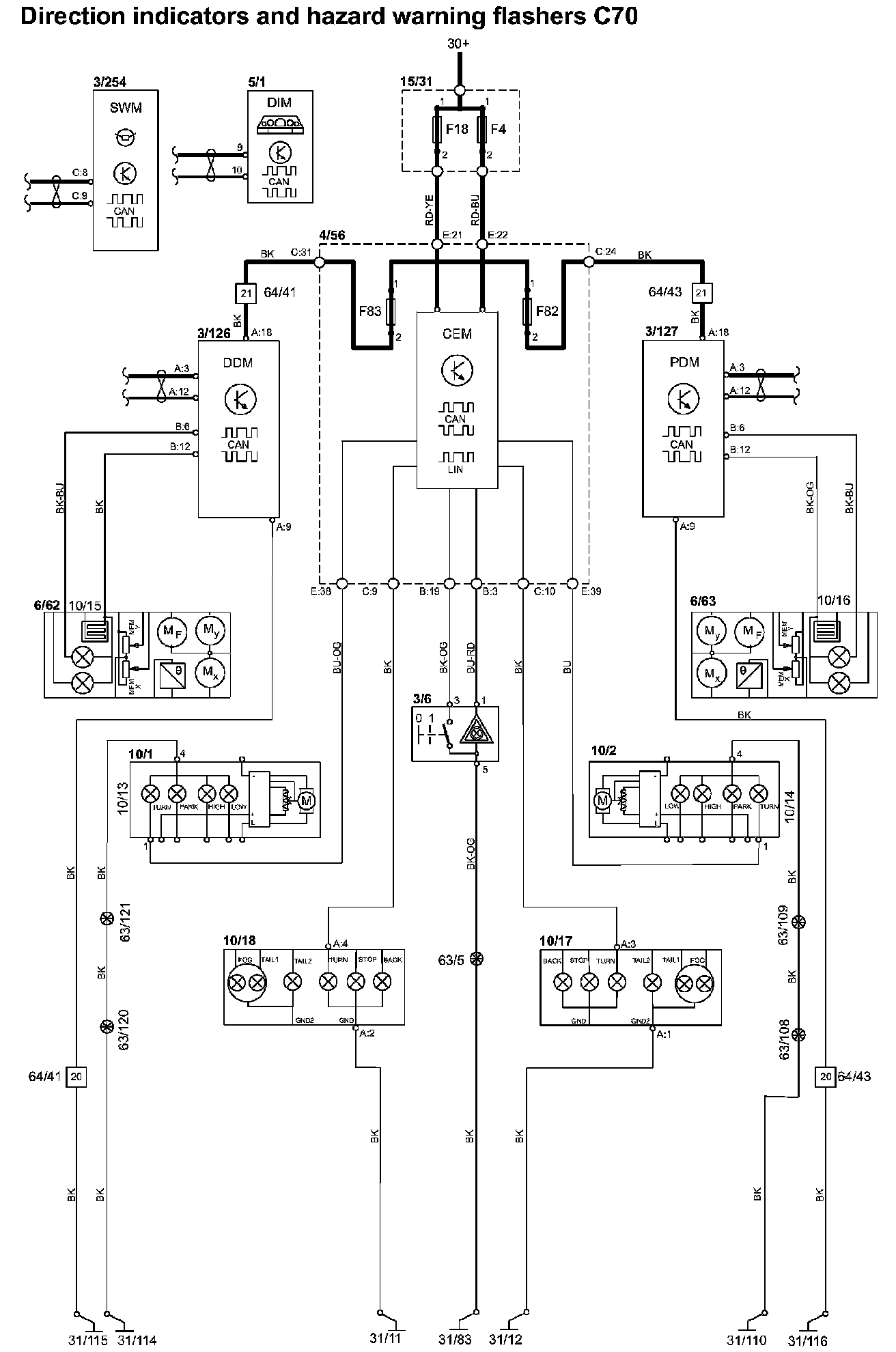

Direction Indicators And Hazard Warning Flashers C70

Direction Indicators and Hazard Warning Flashers:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
