Tail Lamp: Locations

Location of components, tail lamp.

Operation number: 53312

Note! Some variation in the illustrations may occur, but the essential information is always correct.

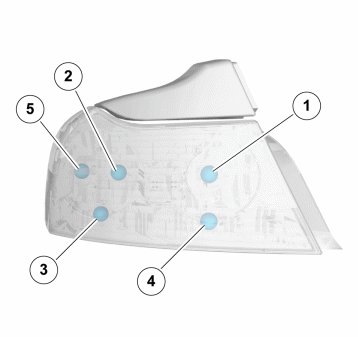

Location Of Components, Tail Lamp:

1. Brake light
2. Tail lamps
3. Turn signal lamps
4. Back-up lamp
5. Fog tail lamps.

Note! Bulb for rear fog light is only found in one of the tail lights. In the left tail light on left-hand drive vehicles, and on the right side on right-hand drive vehicles.
