Position/Parking Lights, Tail Lights

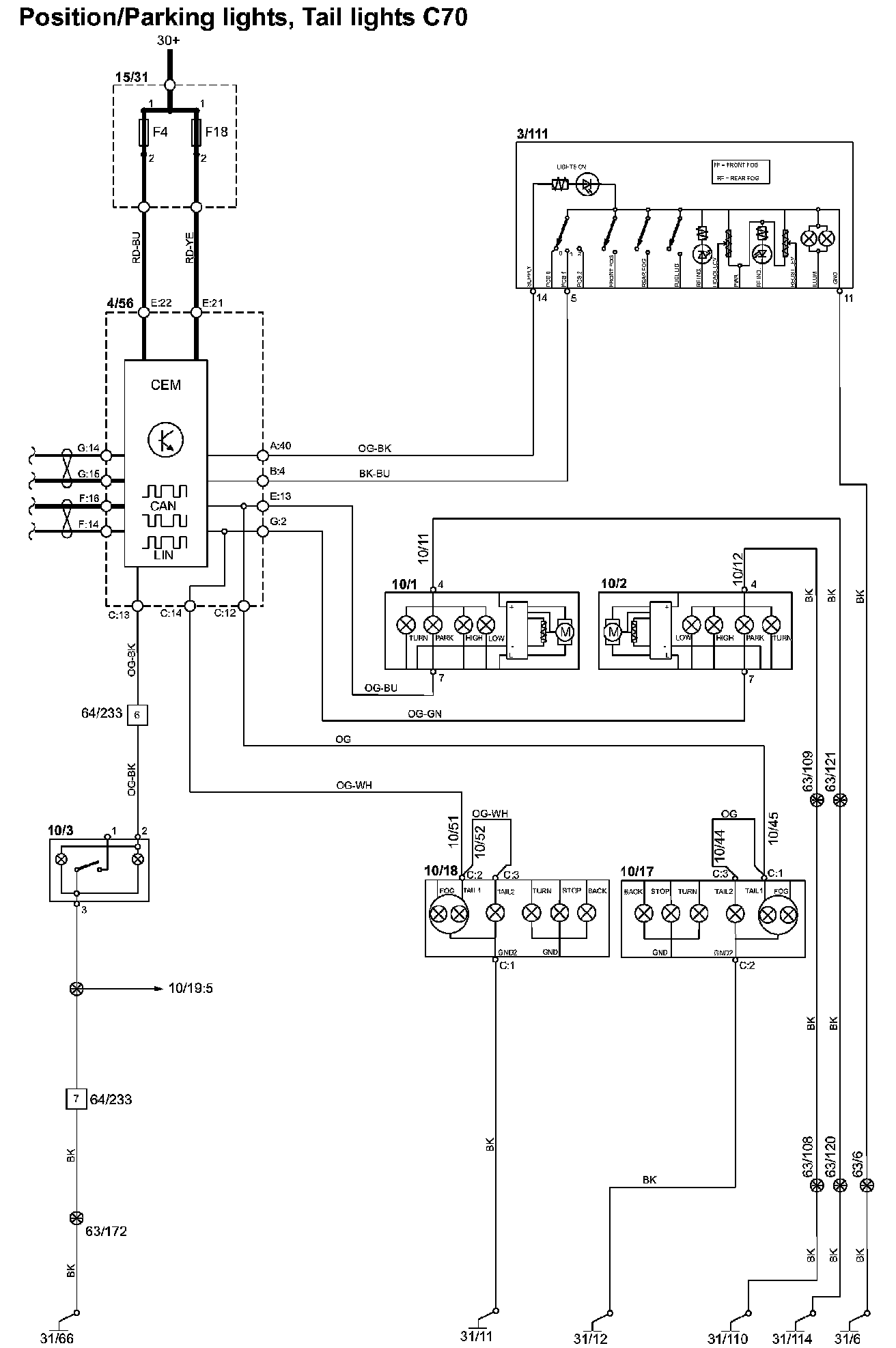

Position/Parking Lights, Tail Lights C70

Position/Parking Lights, Tail Lights:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
