Marker Lamp: Service and Repair

Side turn signal flasher

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

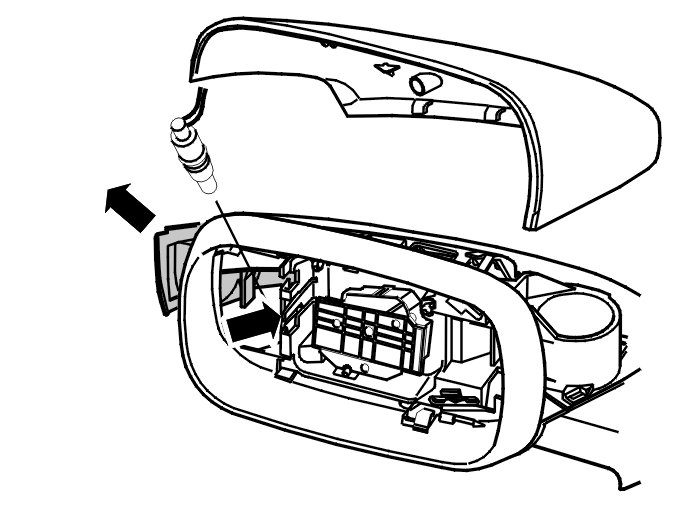

Removing the bulb holder and lamp housing





Note! To replace the bulb, it is only necessary to remove the glass. Rear View Mirror External

Remove:
- the bulb holder
- the lamp housing. Press in the catch. At the same time pull the lamp housing up and out at an angle.

Installation

Installing the bulb holder and lamp housing

Install:
- the lamp housing
- the bulb holder.
Install the cover and mirror glass. Rear View Mirror External
