Headlamps

Headlamps

Operation number: 35203-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Removal





Ignition off.

Switch off the lighting switch.

CAUTION:
- The plastic lens on the headlight scratches easily. Do not place the headlight on a hard surface with the lens facing down.
- Do not damage the paintwork on the bumper when removing/installing the headlight.

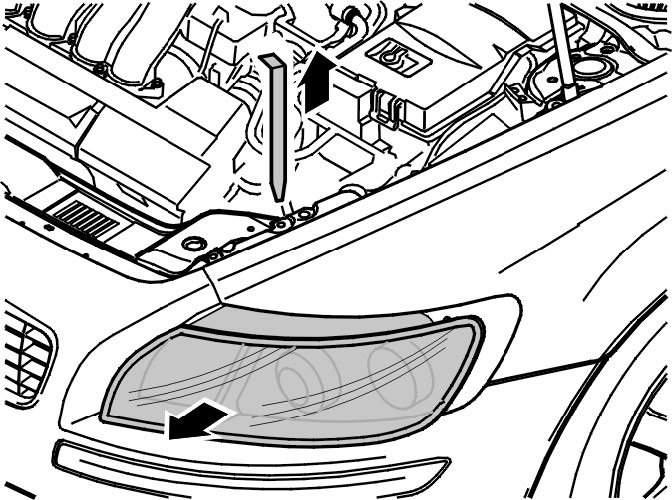

Removing headlamp

Remove:





- the lock plate
- the headlight.

Installation

HINT: Press the light straight back, then fit the guides in their place.

Install:





- the connector
- the headlight
- the locking plate.
