Headlamp Masking

Headlamp masking

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing headlamp
Remove the headlamp. Headlamp Bulb.

Adaptation

Adapting the beam




To avoid dazzling oncoming traffic due to an incorrect beam, the headlamp beam can be adjusted. A correct beam also distributes the light more effectively out to the side of the road.

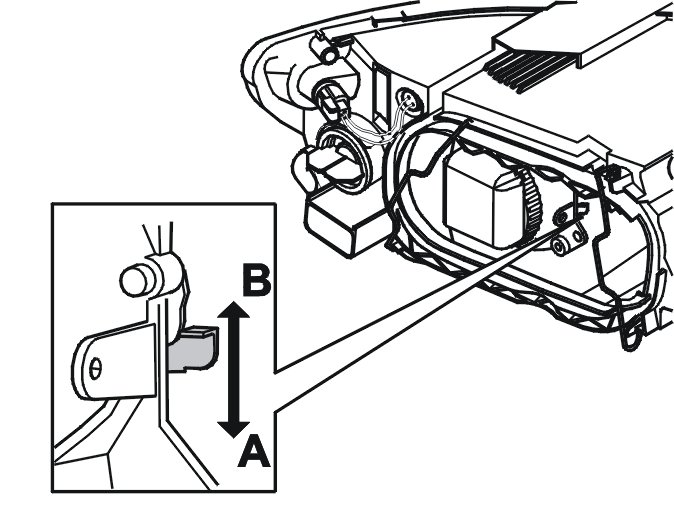

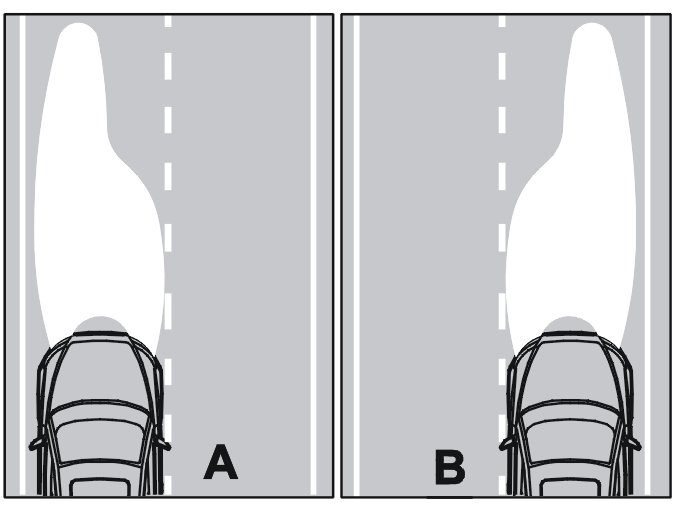

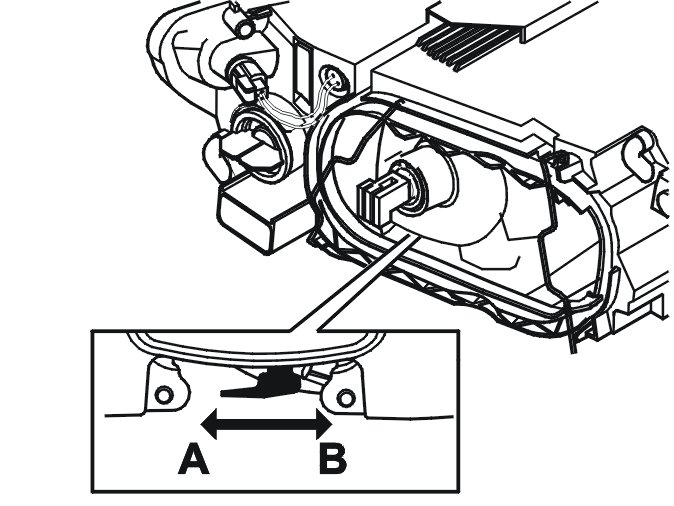

The headlamp control must be in position (A) in left-hand traffic or in position (B) in right-hand traffic. See the illustrations.

Halogen lamp





Bi-Xenon lamp





Warning! Always disconnect the headlamp electrical connector and remove the headlamp from the vehicle before carrying out work on Bi-Xenon headlamps. There is high voltage and a risk of explosion.

Installation

Installing the headlamp
Install the headlamp. Headlamp Bulb.
