Fog Lights LHD, Japan

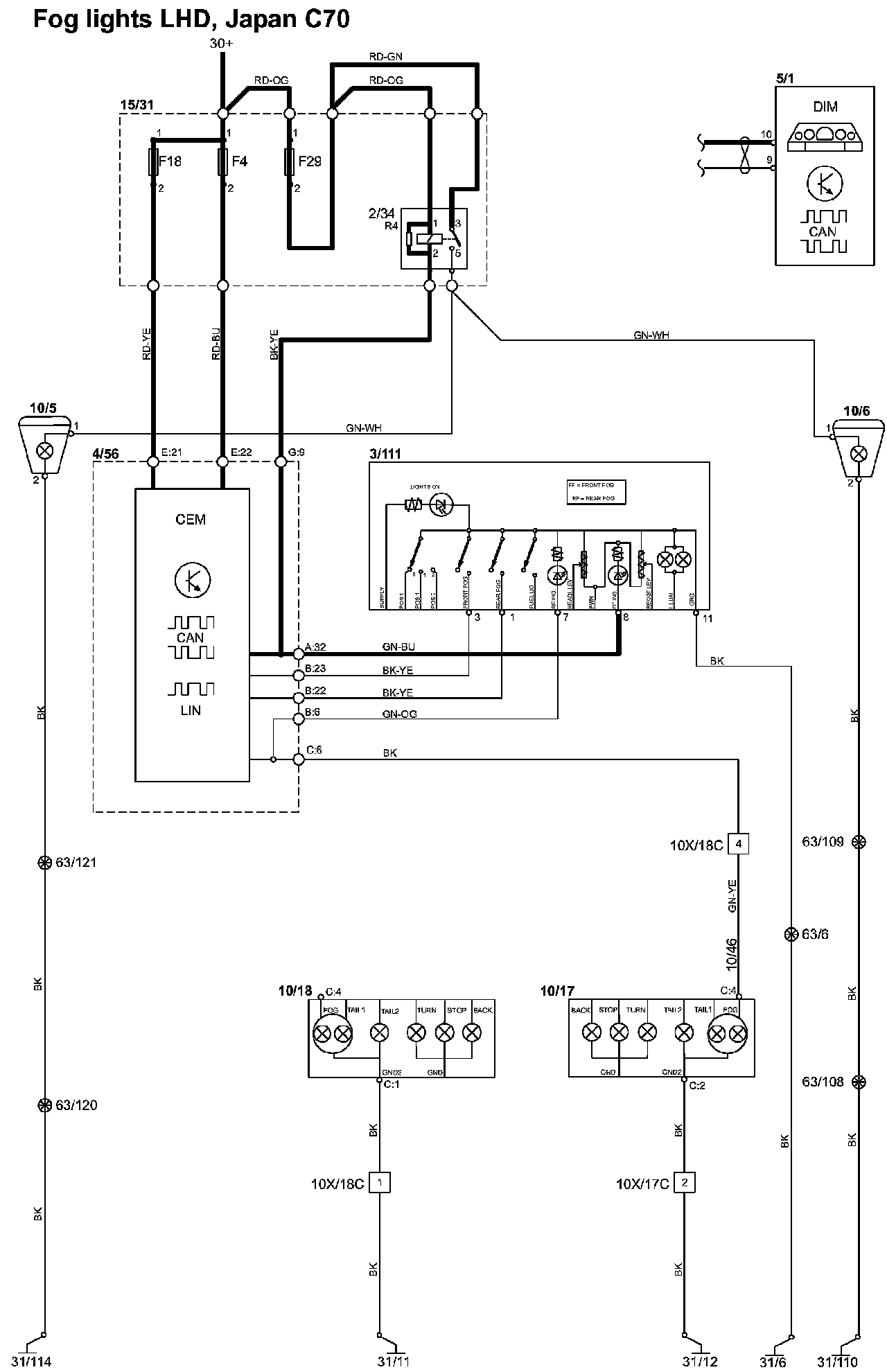

Fog Lights LHD, Japan C70

Fog Lights LHD, Japan:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
