Courtesy Lamp: Service and Repair

Bulb, door mirror, ground lighting

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the lamp assembly and bulb




Angle the mirror glass upwards / outwards.

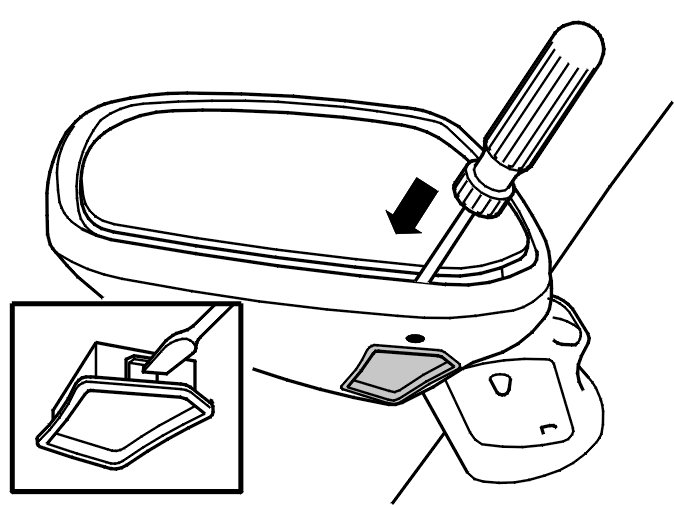

Insert a screwdriver in the opening and press the catch in to release the lighting.
Pull out the bulb holder. Remove the bulb.

Installation

Installing the lamp assembly and bulb
Install the bulb.
Align the bulb holder. Press the bulb holder into place.
