Glove Box Lamp: Service and Repair

Lighting glove compartment

Note! The illustrations in this service information are re-used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

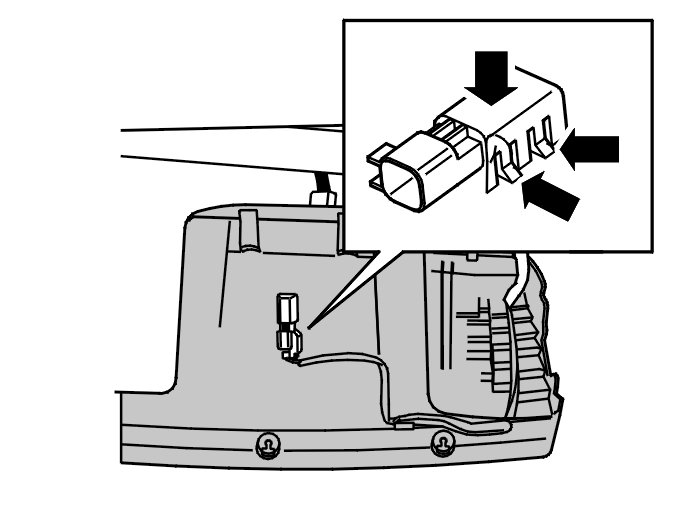

Removing the glove compartment lighting
Angle the glove compartment down. Glove Compartment






Remove:
- the connector
- the bulb holder. Press in the catches
- the bulb.

Installation

Installing the glove compartment lighting

Install:
- the bulb in the bulb holder
- the bulb holder
- the connector
- the glove compartment. Glove Compartment
