Backup Lamp: Service and Repair

Bulb tail lamp

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing light bulbs

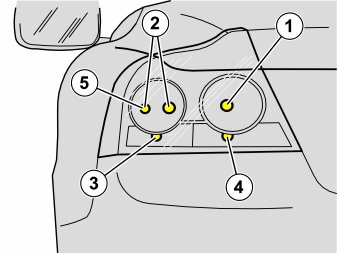

For position of bulbs in the tail light, see figure.
1. Brake light
2. Tail light
3. Turn signal lamps
4. Back-up light
5. Rear fog light

Note! Bulb for rear fog light is only found in one of the tail lights. In the left tail light on left-hand drive vehicles, and on the right side on right-hand drive vehicles.

Removal

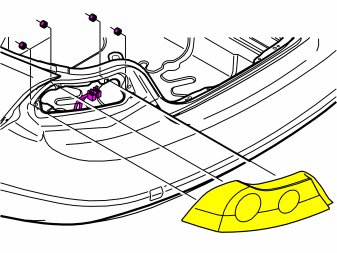

Removing the tail light





Remove:
- the connectors, x2
- the 4 nuts
- the tail light.

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications.

Installing the tail light

Install:
- the tail light.
- the 4 nuts
- the connectors, 2 pcs.
