Tire Monitor - Service Kit Part Numbers/Applications
NO: 77-21DATE: 3-31-2008
MODEL: All with TPMS (Tire Pressure Monitoring System)
M. YEAR: 2005-
SUBJECT:
TPMS Sensor and Service Kit Part Numbers and Applications
REFERENCE: VIDA, TNN 77-18
Note!
If using a printed version of this TNN, first check for the latest online version.
Description
A Tire Pressure Monitoring System (TPMS) is required by the U.S. government to be fitted to 100% of the Model Year 2008 and newer vehicles. It is an optional system in Canada. TPMS was phased in during Model Years 2005-2007.
The parts information in VIDA regarding TPMS sensor part numbers is missing or incorrect. A future version of VIDA will be updated with the correct information. The most current information regarding TPMS sensor and service kit part numbers and model applications is below.
Service

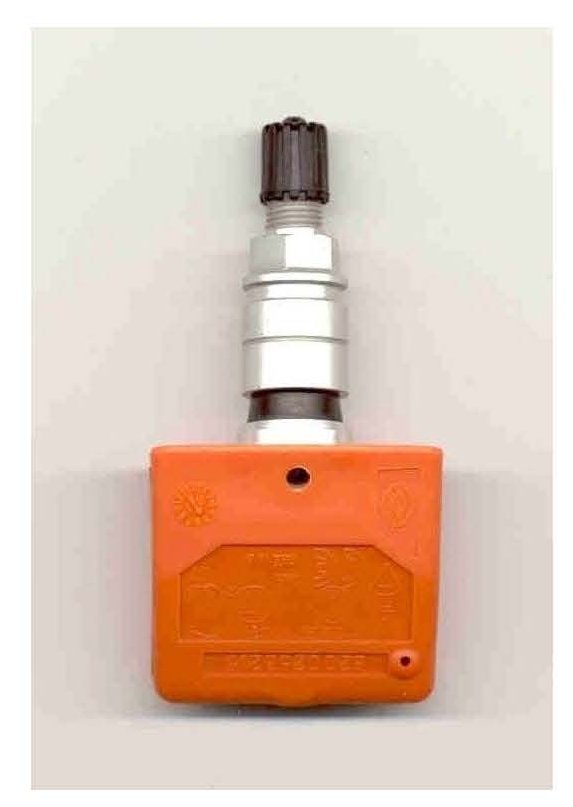

For S40, V50, C70, C30 vehicles, and for MYO7- S80, MYO8- V70, and MYO8- XC70:
TPMS sensor with service kit pn: 30681555
Service kit alone (without sensor) pn: 31201796
For S60, -MYO6 S80, -MYO7 V70IXC70, and XC9O:

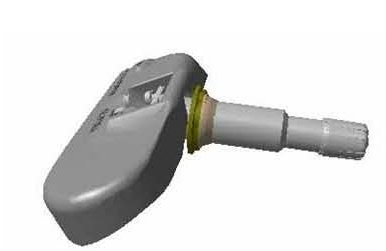

The original version of the TPMS sensor (pictured left) was used on:
^ -MY06 S60
^ -MY07 V70/XC7O
^ S60 up to chassis number -688292
^ XC90 up to chassis number -456766
This TPMS sensor pn: 30748991
For these models, the TPMS service kit pn: 30736598.

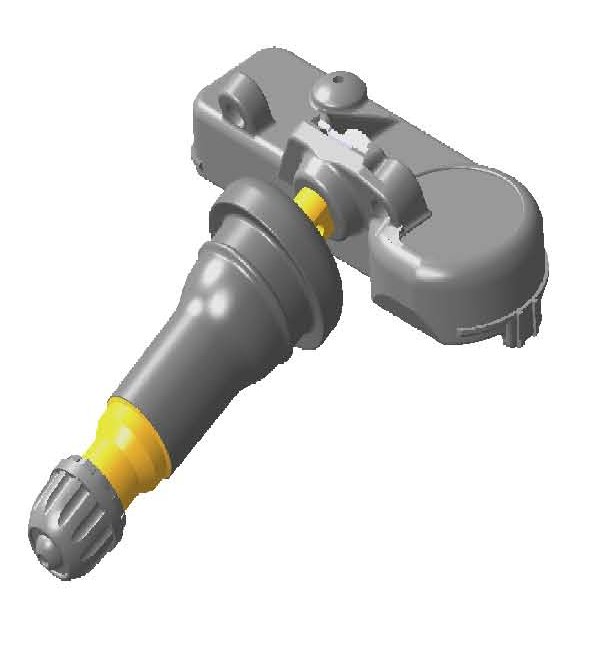

A newer version of the TPMS sensor (pictured left), with a rubber valve stem and a snap-in transmitter, was introduced in production from the following chassis numbers:
^ S60: 688293-
^ XC90: 456767- This TPMS sensor pn: 31200923
Note!
On Model Year 2008 S60 and XC90 vehicles, the appearance of a rubber valve stem does not indicate lack of TPMS sensors. As stated above, the sensor design changed. There is no need to replace the rubber valve stem type sensors with the earlier versions. Also, if service replacement is required, the two designs are compatible on the same vehicle.
