Instrument Panel Lower

Instrument Panel Lower

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing soundproofing panels

Remove:

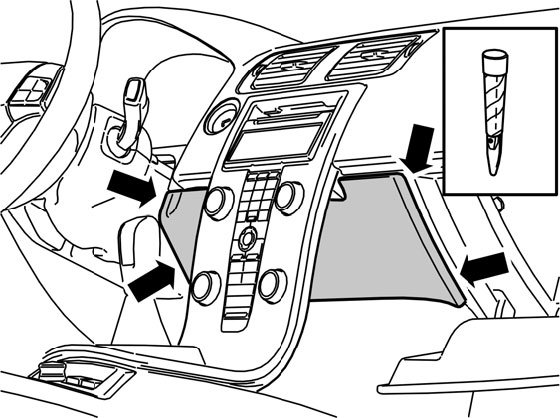

- the panel inside the center console. It is secured with 4 hidden clips.





- the end cover. Use a weatherstrip tool
- the 1 clip (1).

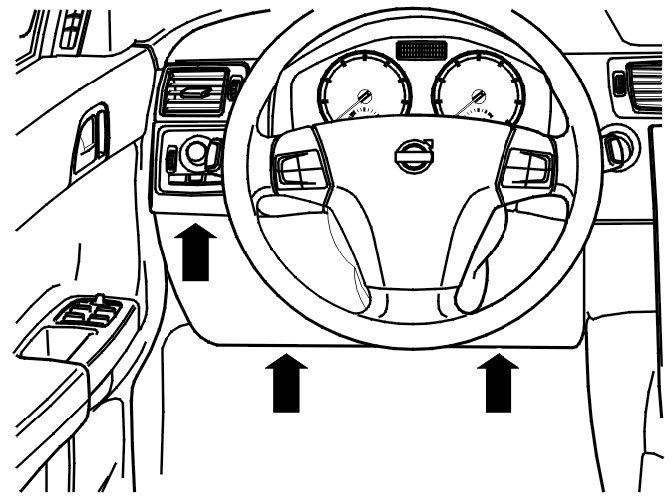

- the 3 screws.

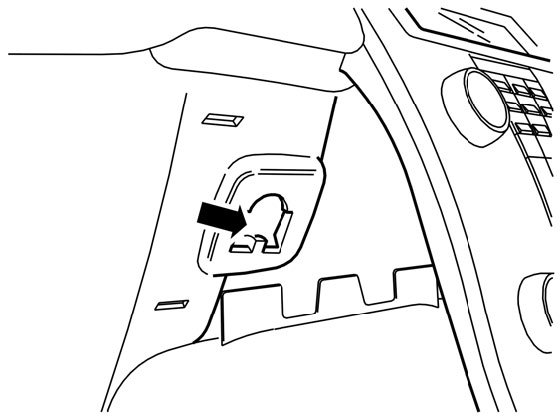

- the passenger compartment temperature sensor.

Press the sensor forward in the vehicle to release it.

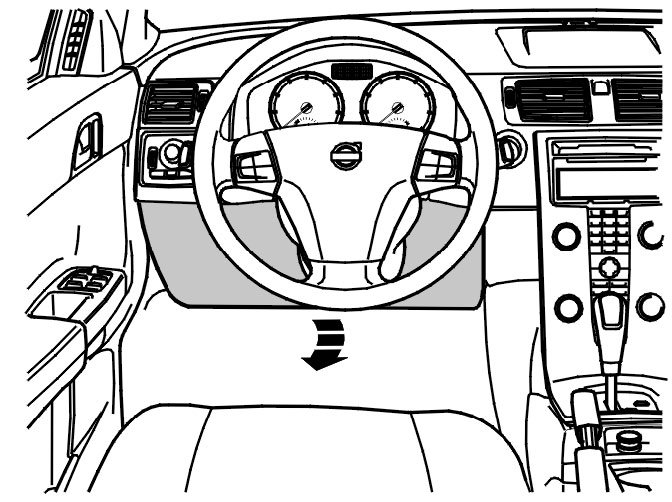

Pull the panel down and out.

NOTE: There are 2 hidden clips at the top edge of the soundproofing panel.

Disconnect the 1 connector for the courtesy lighting.

Installation

Installing the soundproofing panel
Connect the connector for the courtesy lighting.

Guide the panel into place. Secure the passenger compartment temperature sensor.

NOTE: There are 2 hidden clips at the top edge of the soundproofing panel.

Install:
- the 3 screws. Tighten
- the 1 clip
- the end cover
- the panel inside the center console. It is secured with 4 hidden clips.
