Climate units

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

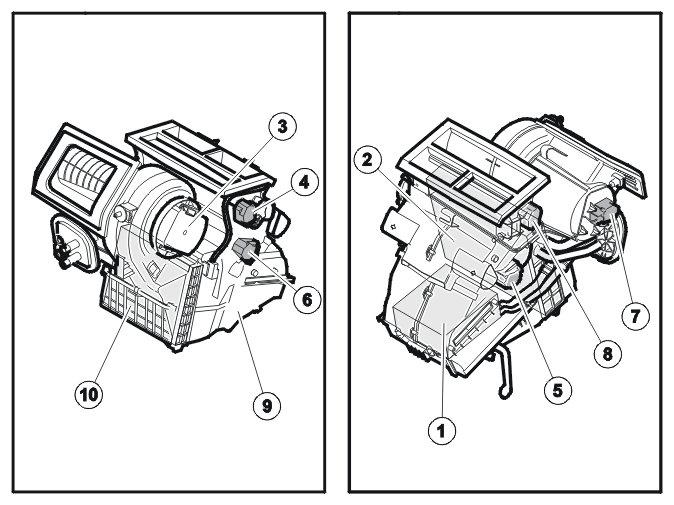

Location of the climate control unit components

Location Of The Climate Control Unit Components:

1. Heat exchanger
2. Evaporator
3. Fan motor
4. Damper motor module (DMM) air distribution
5. Damper motor module (DMM) temperature, right-hand
6. Damper motor module (DMM) temperature, left-hand
7. Damper motor module (DMM) recirculation
8. Damper motor module (DMM) defroster
9. Evaporator temperature sensor
10. Air cleaner (ACL) passenger compartment.
