Timing Belt, Replacing

Timing belt

Operation number: 21552-2

Note! Some variation in the illustrations may occur, but the essential information is always correct. Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- the auxiliaries belt
Refer to: Tensioner accessory drive belt
- right-hand engine pad.
Refer to: Engine support insulator, right

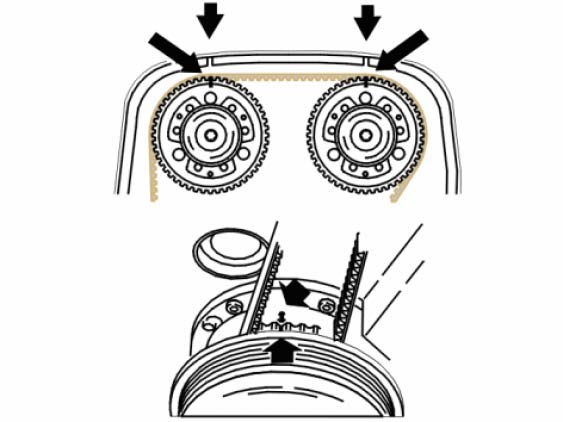

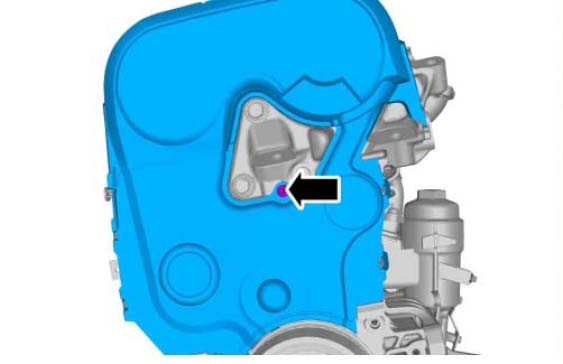

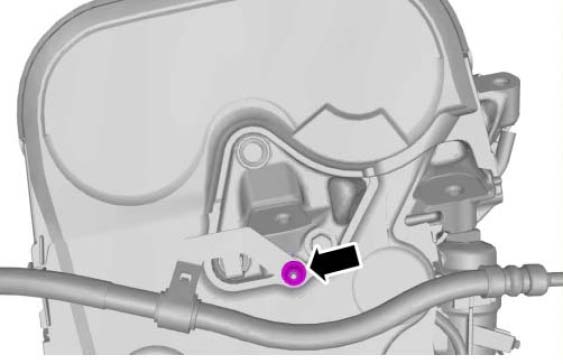

Torque: M6, 10 Nm

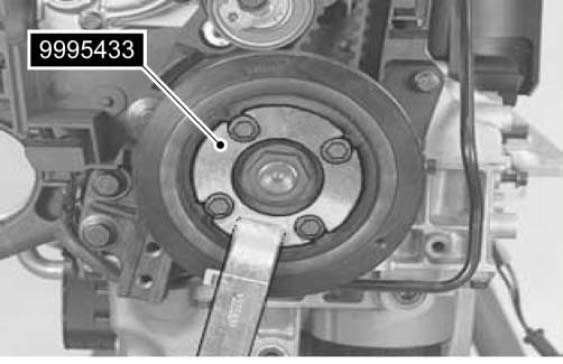

Special Tool: 999 5433

Note: For additional information regarding Variable Valve Timing see: Variable Valve Timing Actuator, Adjustments Adjustments
Also see Belt Drive, Assembly Belt Drive, Assembly

Installation

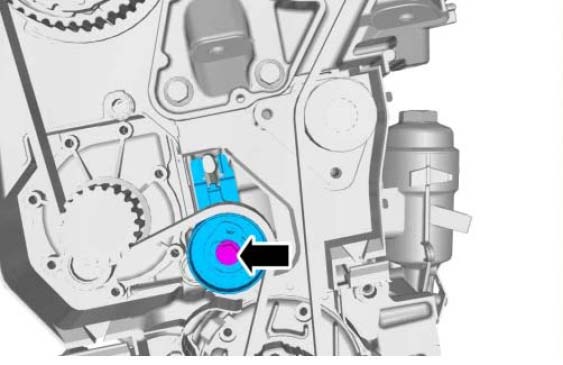

Torque: M8, 24 Nm

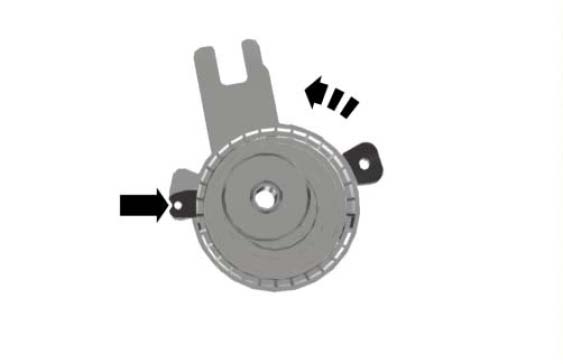

Tension the lock with pin.

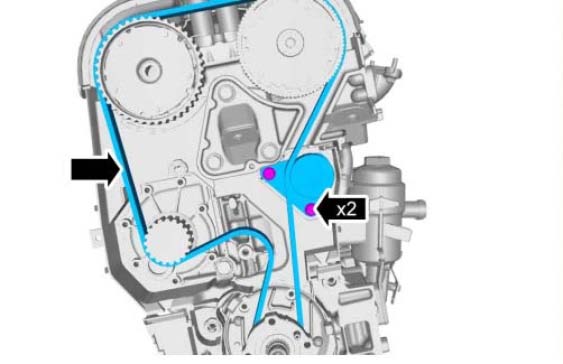

Torque: M8, 24 Nm

Pull out the pin, check that the tensioner has tensioned the belt.

Torque:

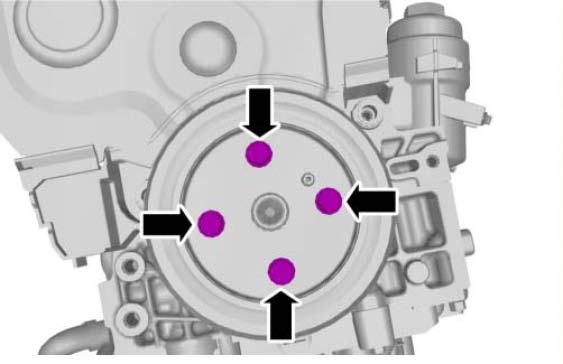

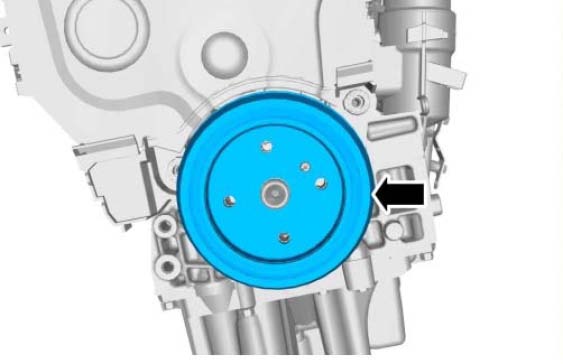

- Stage 1: Oscillation damper, flange screw, 25 Nm
- Stage 2: Oscillation damper, flange screw, 60 degree

Special Tool: 999 5433

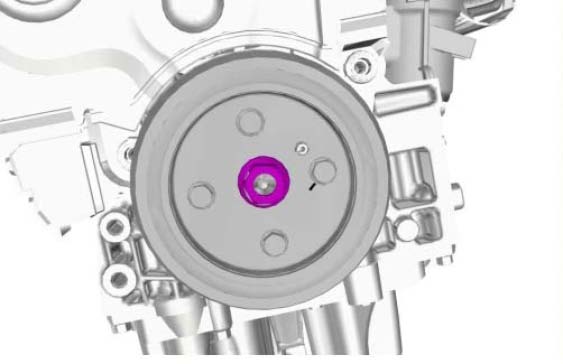

Torque: Center nut vibration damper (crankshaft), 180 Nm

Torque: M6, 10 Nm

Install the following items:

- right-hand engine pad.
Refer to: Engine support insulator, right
- the auxiliaries belt.
Refer to: Tensioner accessory drive belt
