Crankshaft Axial Play

Crankshaft axial play

Operation number: 21685-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

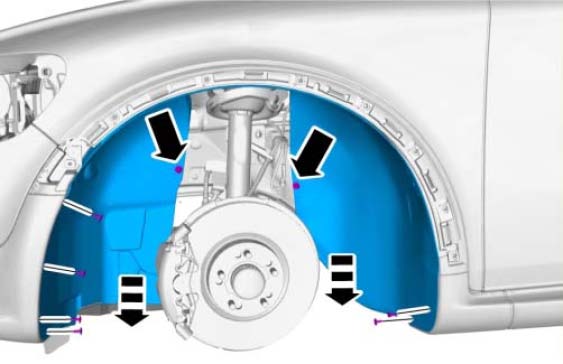

Remove the wheel.

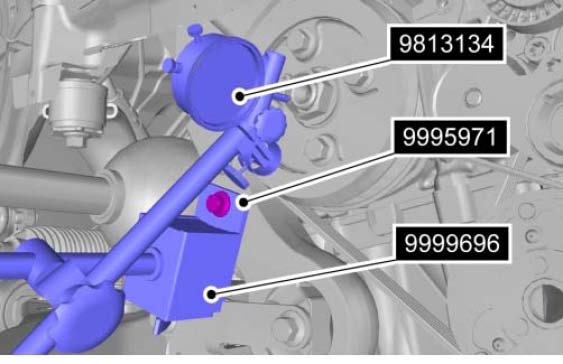

981 3134
999 9696
999 5971

Torque: M10, 50 Nm

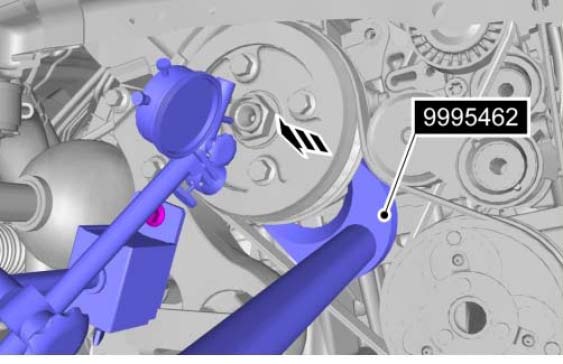

999 5462

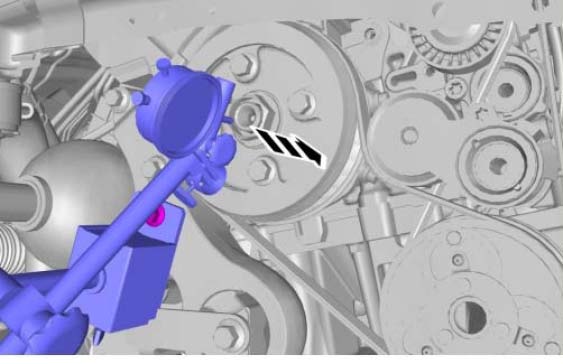

Zero the dial indicator.








Maximum permitted play: 0.25 mm.

Installation
To install, reverse the removal procedure
