Crankshaft Axial Play

Crankshaft axial play

Operation number: 21685-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel. Refer to: Wheels Service and Repair.

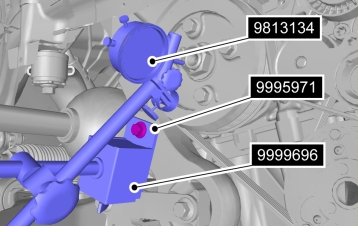

981 3134 DIAL INDICATOR 981 3134 Dial Indicator
999 9696 MAGNETIC BASE 999 9696 Magnetic Base
999 5971 PLATE 999 5971 Plate
Torque: M10, 50 Nm

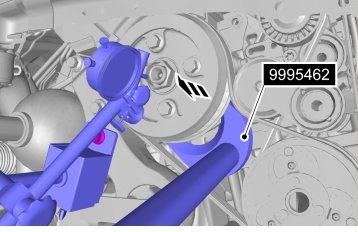

999 5462 Jimmy tool 999 5462 Jimmy Tool

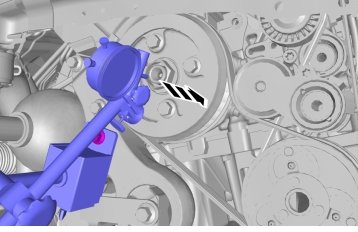

Zero the dial indicator.




Maximum permitted play: 0.25 mm.

Installation

To install, reverse the removal procedure
