Data Communication, Low Speed CAN

Data Communication, Low Speed CAN

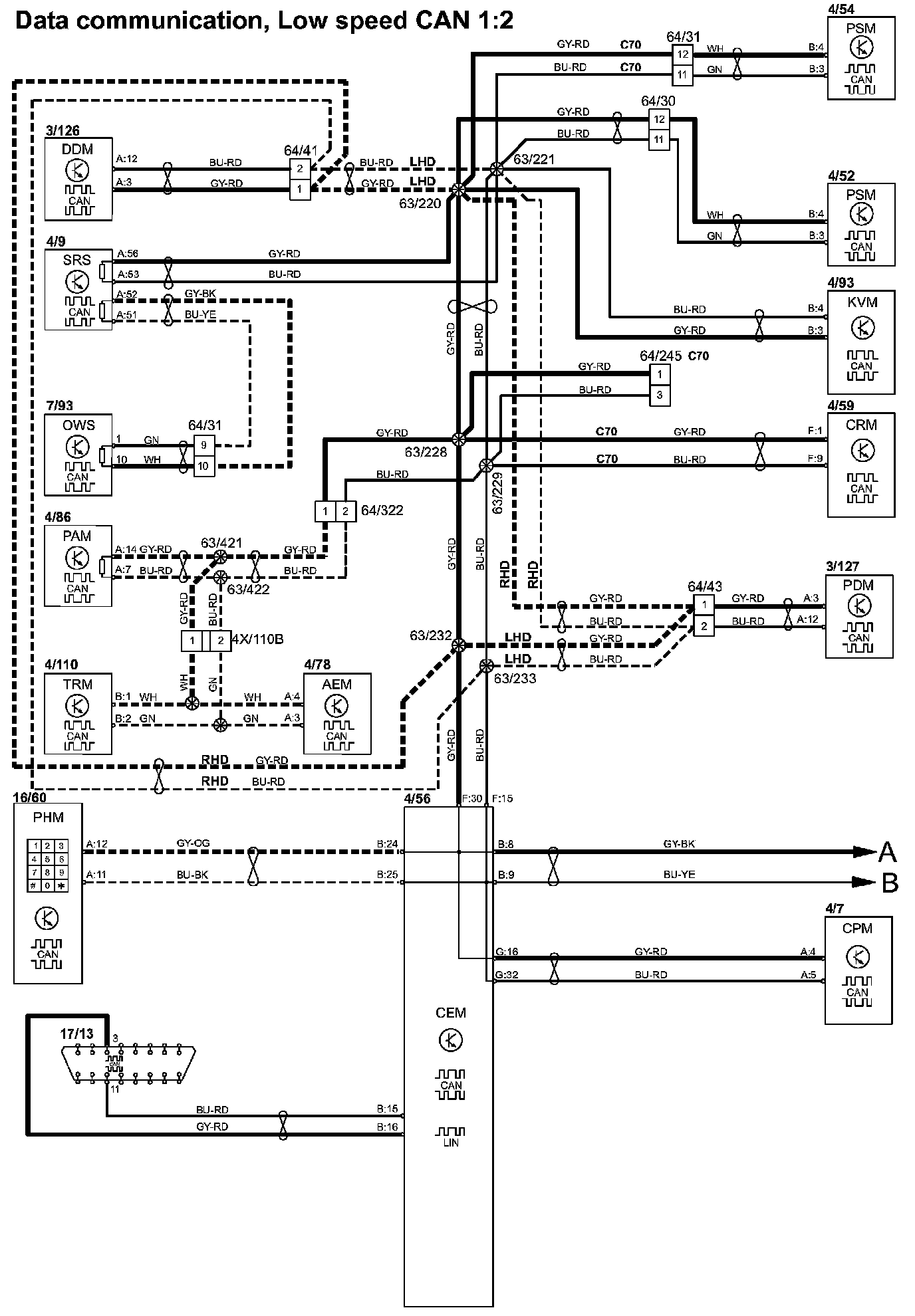

Data Communication, Low Speed CAN 1:2:

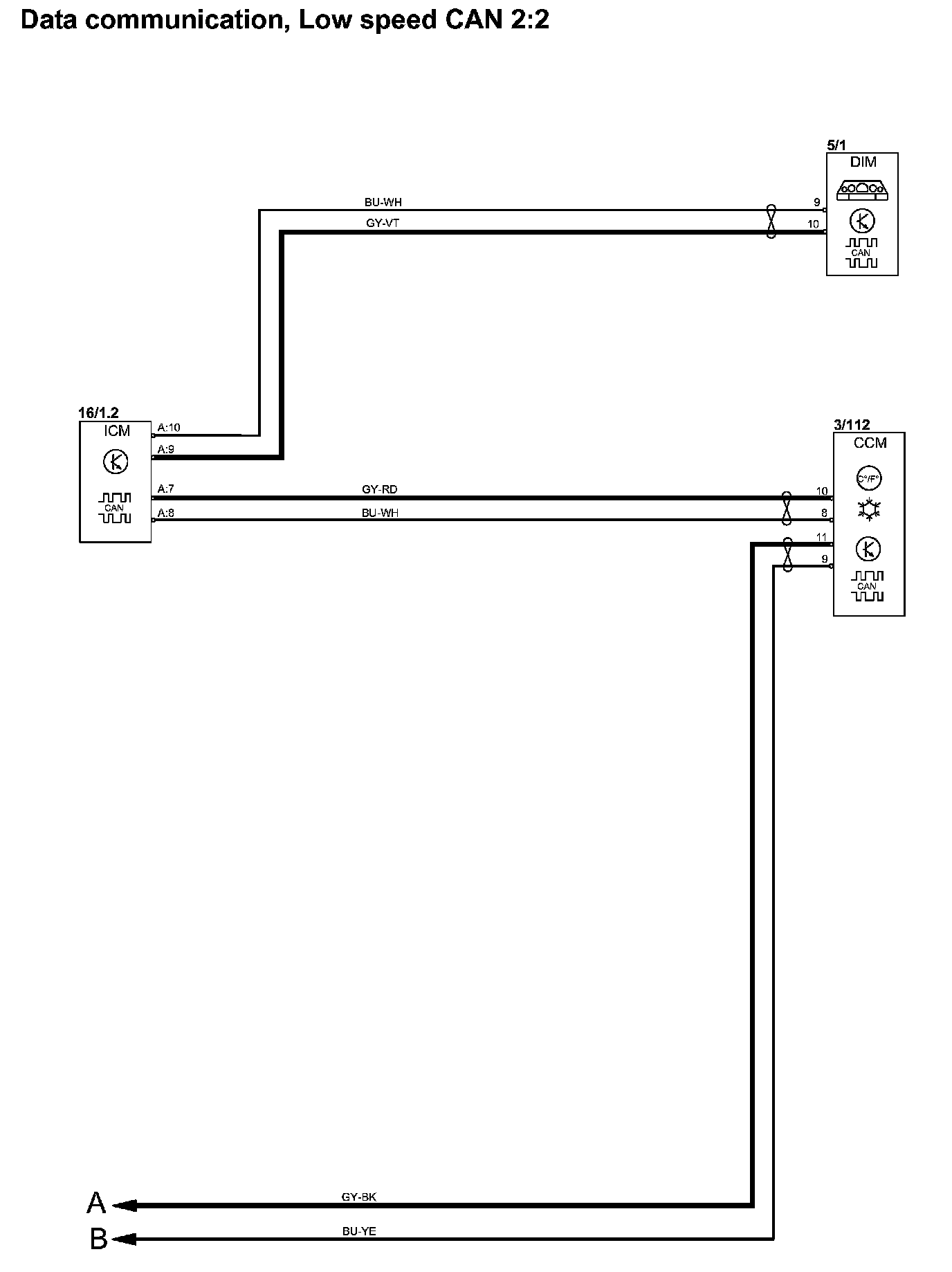

Data Communication, Low Speed CAN 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
