Data Communication, High Speed CAN

Data Communication, High Speed CAN

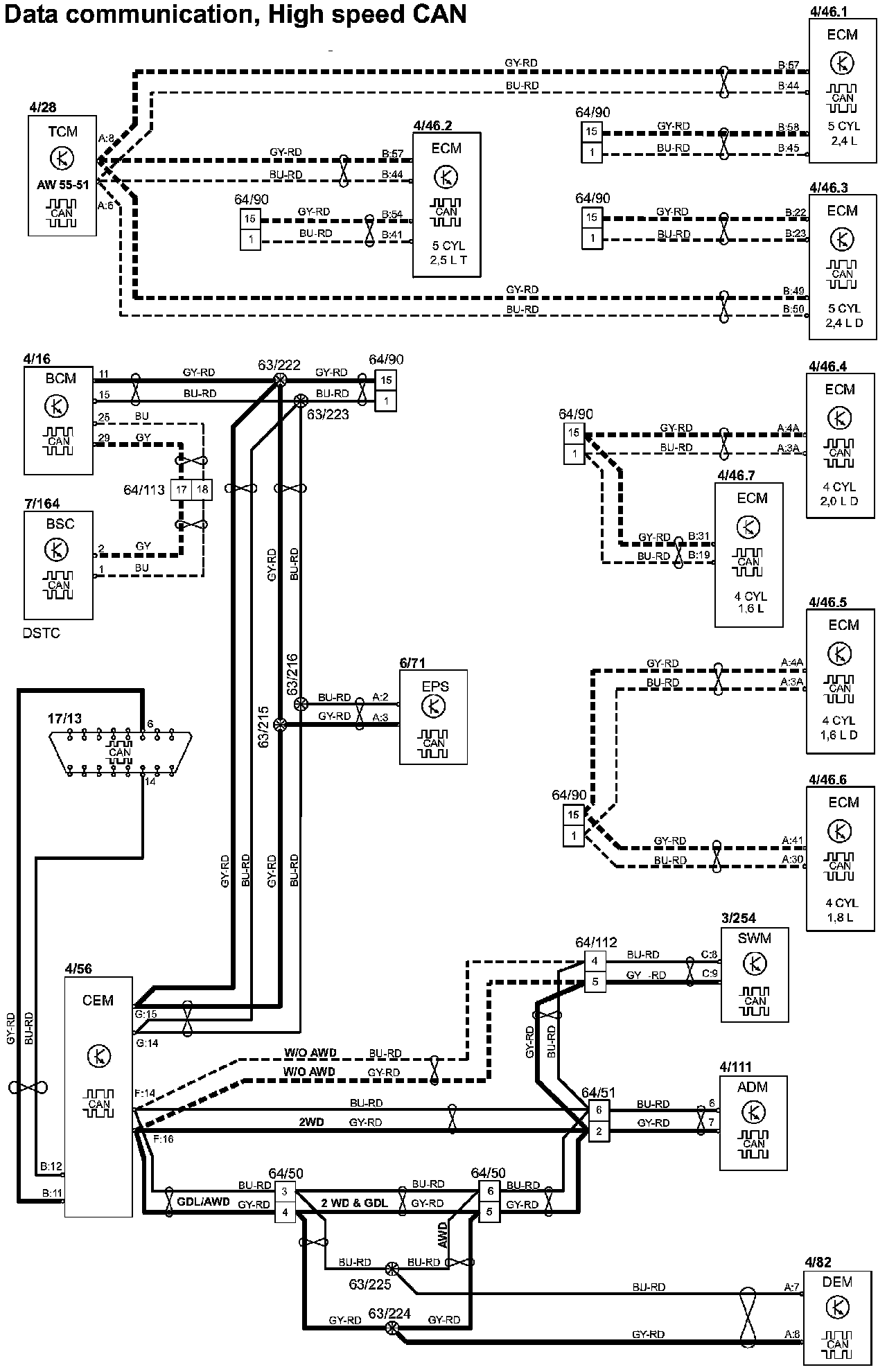

Data Communication, High Speed CAN:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
