Volvo
>>
2007
>>
C70 L5-2.5L Turbo VIN 68 B5254T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
64/80A
64/80A
64/80A:

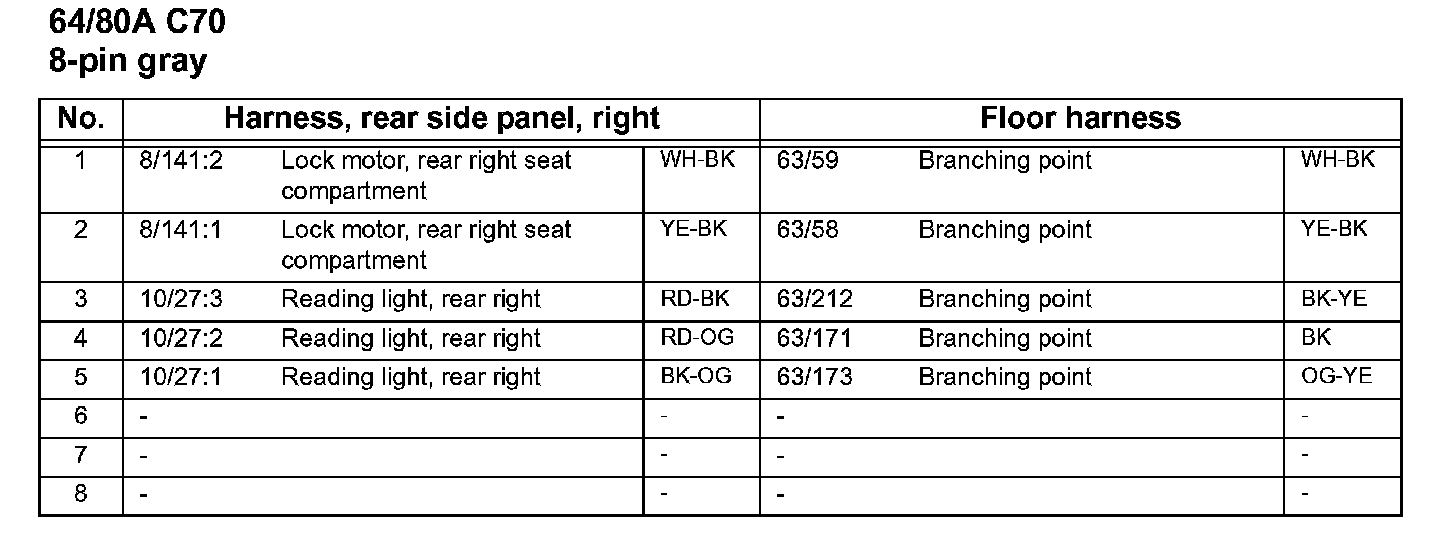

64/80A Connector:
