Home >> Volvo >> 2007 >> C70 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/662

64/662

64/662:

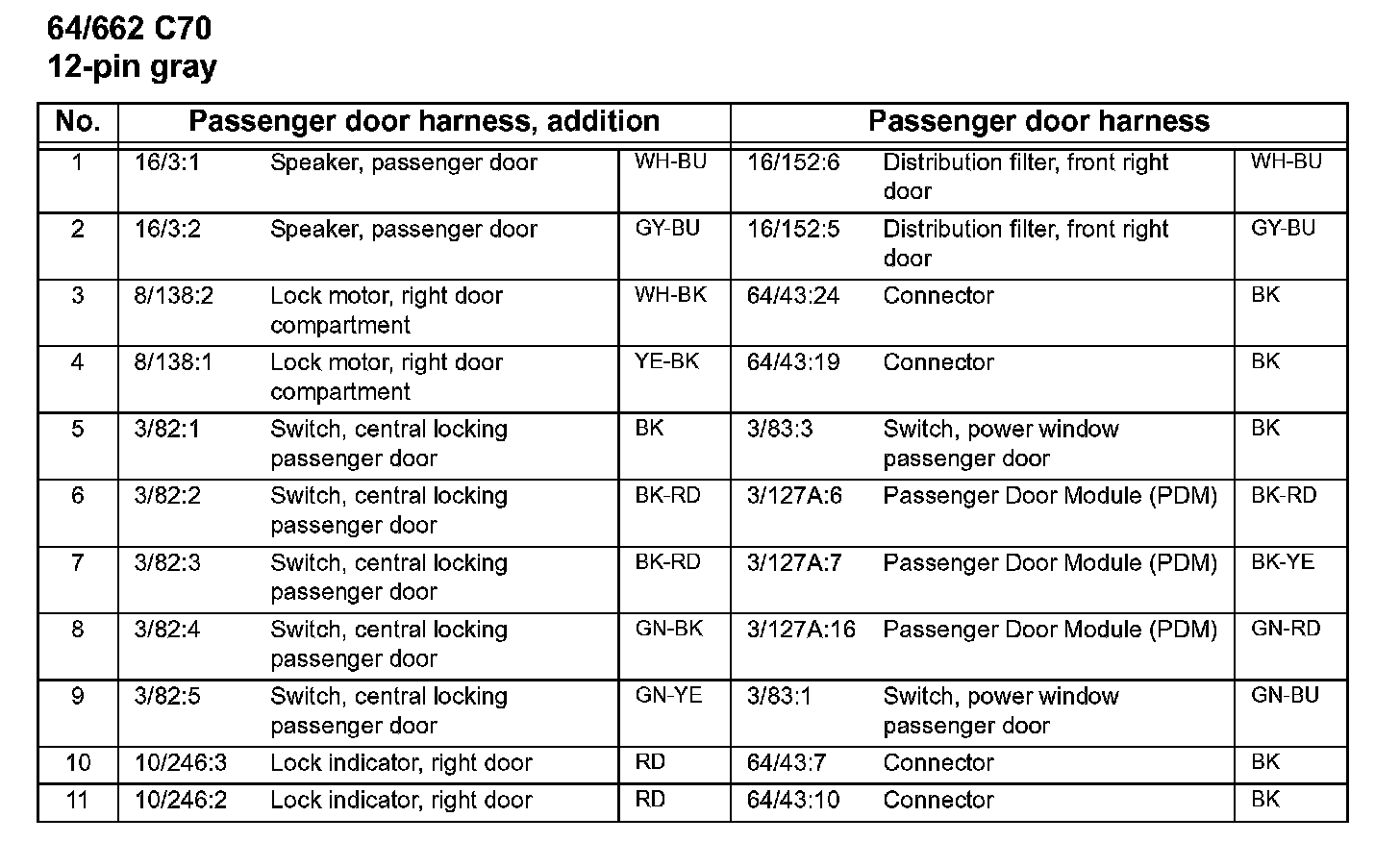

64/662 Connector:
